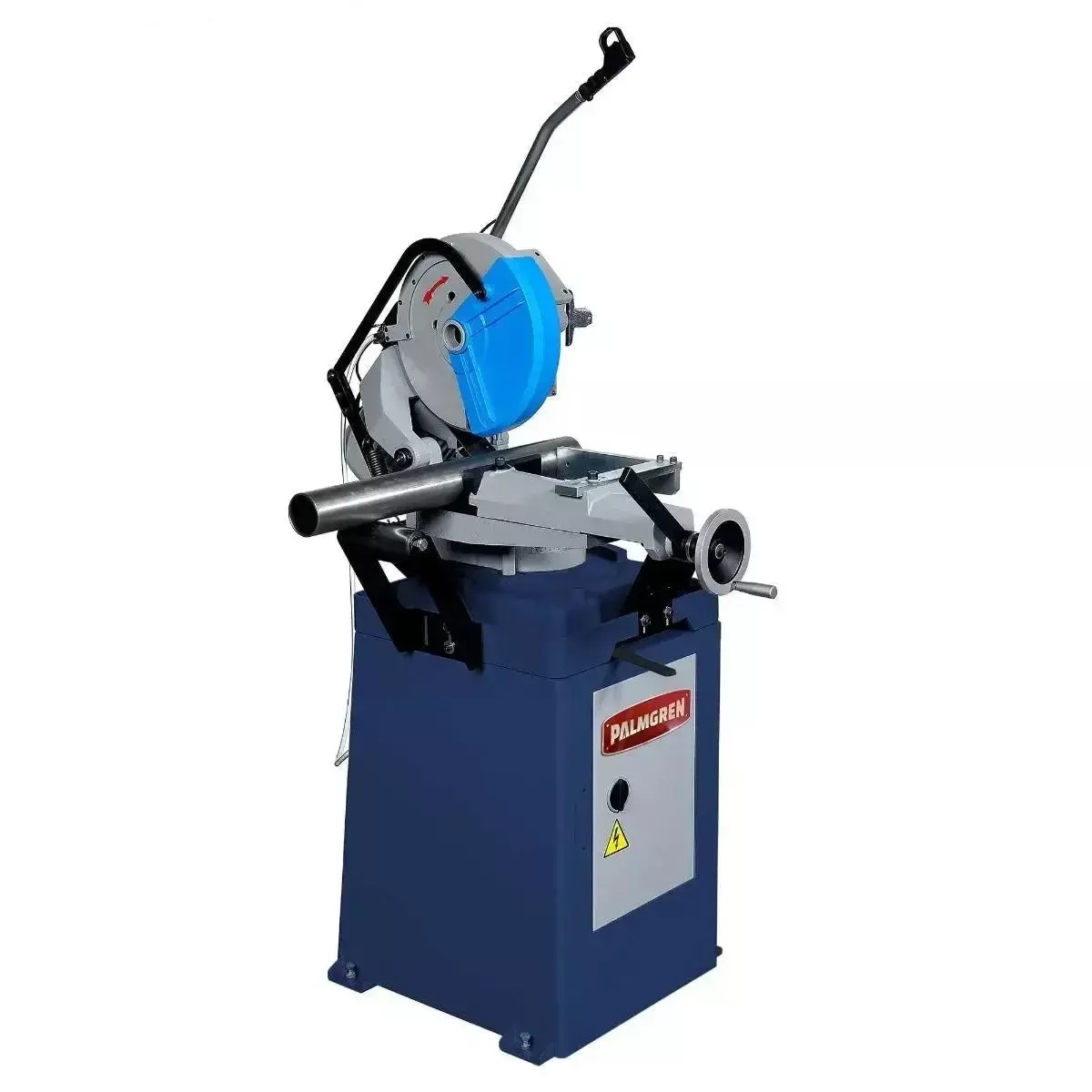

Palmgren’s 14″ model cold saw is ideal for cutting low and high carbon steels, medium gauge tubes and profiles.
It delivers precise, smooth, burr free straight or angle cuts consistently.
- Advanced gear box design utilizing taper roller bearings, hardened and ground gears with a high-quality bronze worm gear in an oil bath
- Rapid acting vise, adjustable, anti-burr, allows for secure clamping of the workpiece, improving accuracy and finish
- Flood coolant system
- Material feed support roller bracket and adjustable work stop
- Safety electrical package includes overload & low voltage protection, safety spring loaded 24-volt trigger switch, emergency stop button and two speed motor switches
- Cast iron base mounted to a heavy-duty solid steel floor stand
| Cold Saw and Band Saw Type | Manual |
| Country of Origin | TW |
| Cutting Angle | 0° / 45° |
| Cutting Angle Adjustment | Manual |
| Feed | Manual |
| Machine Weight (lbs.) | 550 |
| Motor HP | 3 |
| Overall Dimensions (L x W x H) | 49-1/2″ x 40-1/2″ x 71-3/4” |
| Phase | Three |
| Round Material Max. 0° | 3-5/16″ |
| Round Material Max. 45° | 3″ |
| Saw Blade Diameter | 14″ |
| Sawing Type | Vertical Band Saws |
| Square Max. 0° | 4″ x 4″ |
| Square Max. 45° | 3-5/16″ x 3-5/16″ |
| Voltage | 230 |
| Warranty | 3 Year |
| UPC | 726896831510 |
| Unit of Measure | EA |
| Product Length (in) | 28.3 |
| Product Width (in) | 63 |
| Product Weight (lbs.) | 47 |
