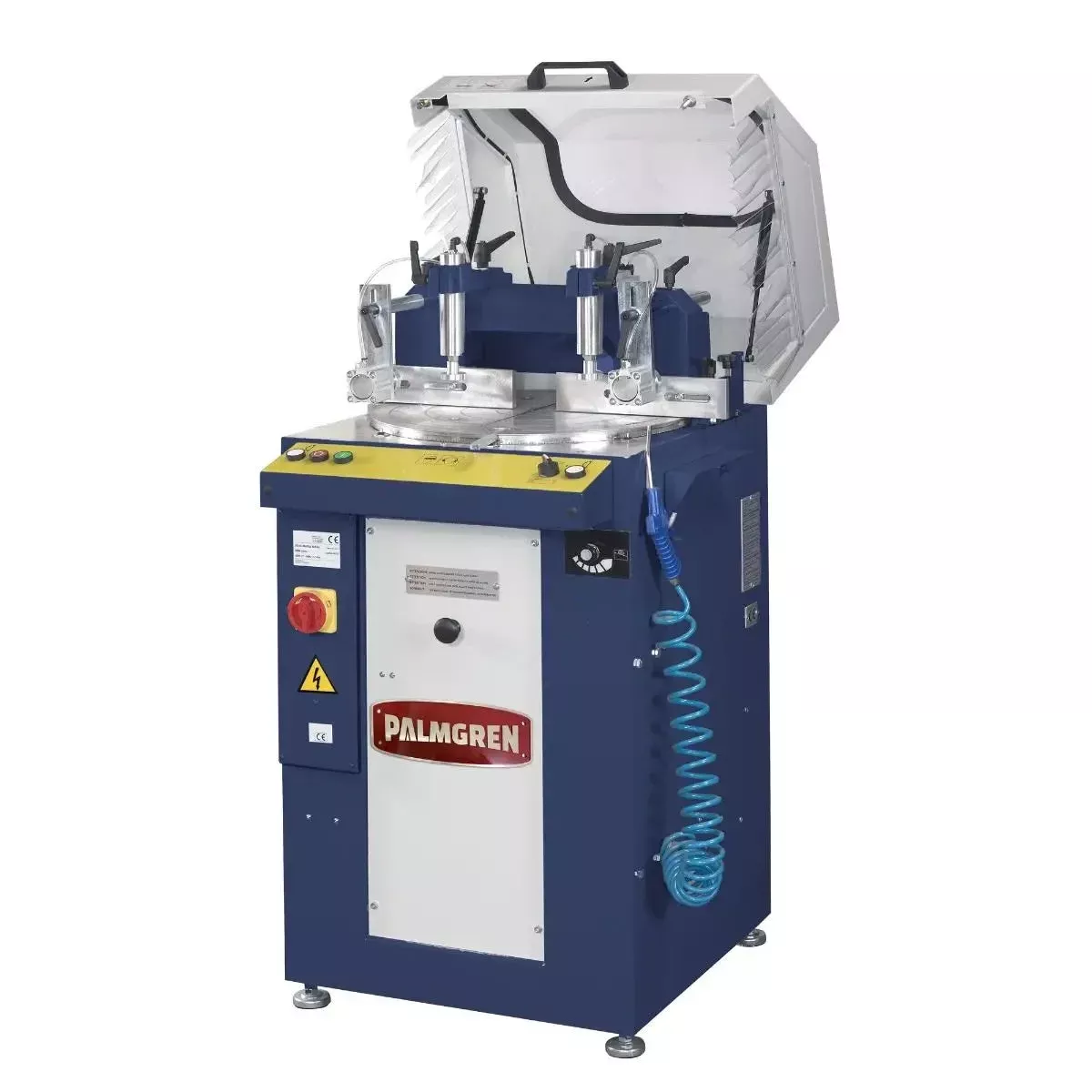

Palmgren’s 16” Non-Ferrous Upcut Saw is designed for cutting aluminum, copper, plastic and all other non-ferrous materials.
The upcut design provides larger cutting capacities versus similarly sized pivot style machines. When used with carbide toothed blades, this saw provides a smooth, burr free cut every time.
- Safety hood with safety interlocks
- Adjustable saw blade feed rate
- Two horizontal and two vertical pneumatic clamps hold the workpiece securely in place
- Adjustable leveling pads
- Air hose and nozzle to clean of work area after each cut
| Cold Saw and Band Saw Saw Type | Manual |
|---|---|
| Country of Origin | TW |
| Cutting Angle | 0°/60° |
| Cutting Angle Adjustment | Manual |
| Feed | Air/Hydraulic |
| Machine Weight | 396 |
| Motor HP | 2 |
| Overall Dimensions (LxWxH) | 26-3/4″ x 31-1/2″ x 55-1/8″ |
| Phase | Three |
| Rectangle 0? | 2-3/8″ x 7-7/8″ |
| Rectangle 60? | 2-3/8″ x 5-1/2″ |
| Round @ 45 Degrees | 4 |
| Round Material Max. 0 Degrees | 4-3/8″ |
| Round Material Max. 60 Degrees | 4″ |
| Saw Blade Diameter | 16″ |
| Sawing Type | Vertical Band Saws |
| Voltage | 230 |
| Warranty | 3 Year |
| UPC | 726896831527 |
| Unit of Measure | EA |
| Product Height (in) | 56.7 |
| Product Length (in) | 29.5 |
| Product Width (in) | 39.4 |
| Product Weight (lbs) | 462 |
