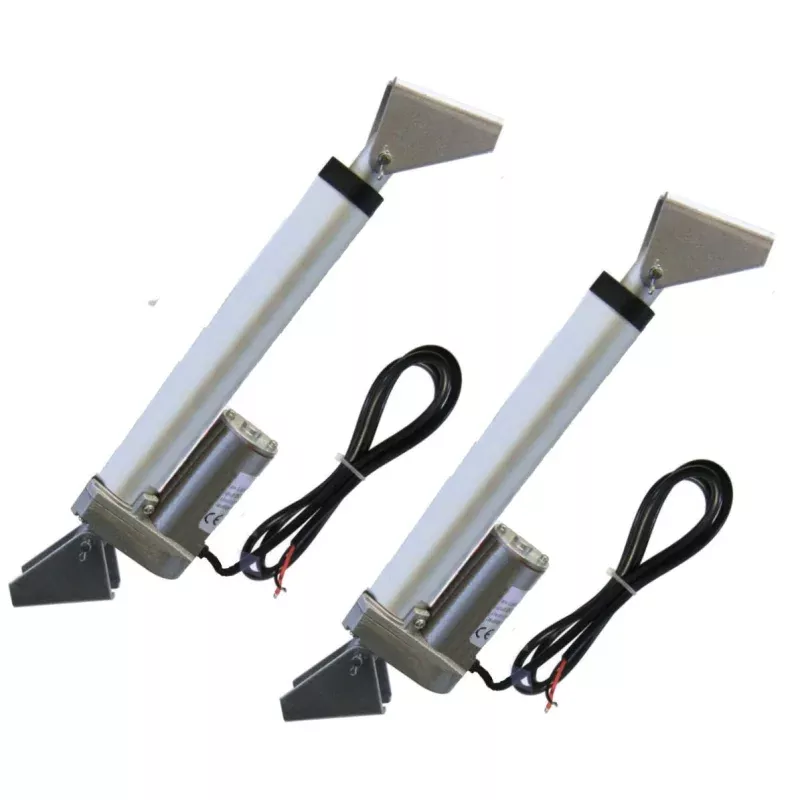

2 X 14″ (14 inch) Linear Actuator with Mounting Brackets
32 1/4” Extended Length
18 1/4″Compressed Length
[From center of Mounting Holes]
Overall Height: 14 7/8″
Width: 2 1/8″ (74mm)
12 Volt
14″ Extension.
200 Pound (91 Kg) Max Lift.
Speed: 12mm /second.
6mm Diameter Mounting holes
20mm Diameter Shaft
Wiring included, pre-installed.
Built-in clutch prevents over-extending and over-compressing.
Includes 2 mounting brackets, 2 pins, and 2 cotter pins.
