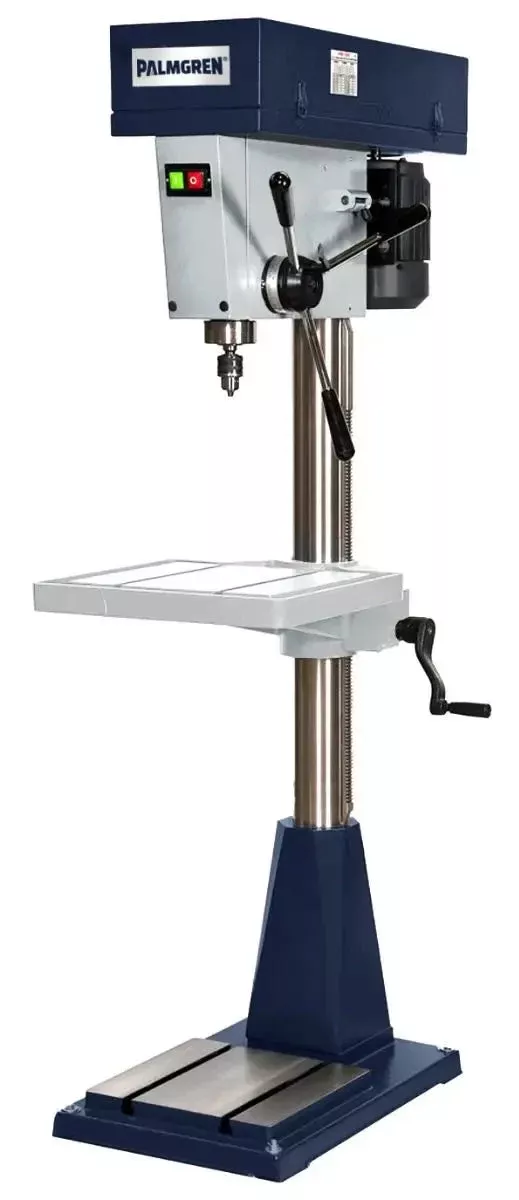

Palmgren’s 20″ Heavy Duty Step Pulley Drill Press comes with a 12-speed stepped pulley system.
This enables the machine to run a wide range of spindle speeds and have toolless speed changes in between operations. With its oversized, cast-iron head, this machine has an increased drilling capacity versus its competitors.
- Comes equipped with an LED work light built into the head casting
- Comes with a 1/2″ drill chuck and arbor
- Oversized 4″ column provides increased rigidity
- A 4-3/4 inch stroke allows for deep hole drilling applications
- Quick belt tension release for rapid speed changes
- Spindle depth stop for blind hole drilling applications
| Specification | Details |
|---|---|
| AMPS | 16/8 |
| Capacity Cast Iron | 1-1/4″ |
| Country of Origin | TW |
| Motor HP | 1 |
| Overall Dimensions (LxWxH) | 32-1/2″ x 24-1/2″ x 70-1/2″ |
| Phase | Single |
| RPM | 140 – 2,600 |
| Spindle Taper | MT3 |
| Spindle Travel | 4-3/4″ |
| Swing | 20″ |
| Table Slots | 5/8″ |
| Voltage | 115/230 |
| Warranty | 3 Year |
| UPC | 726896801162 |
| Unit of Measure | Each |
| Product Height (in) | 77 |
| Product Length (in) | 36 |
| Product Width (in) | 29 |
| Product Weight (lbs) | 484 |
