DESCRIPTION

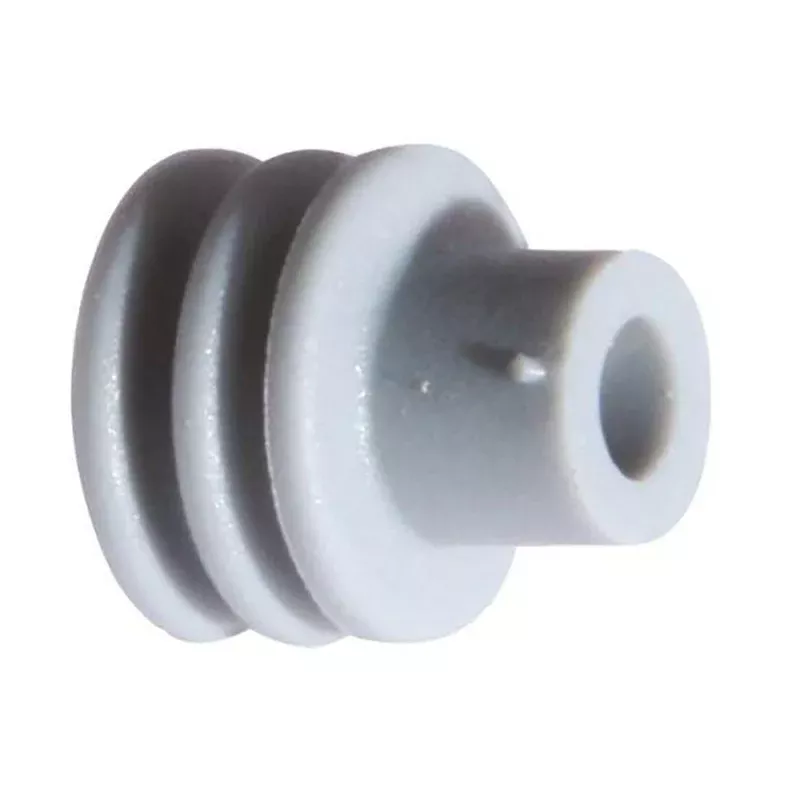

Aptiv (Delphi) Weather Packare popular electricalconnectorscommonly used in automotive applications as they seal against moisture, dust and dirt. Weather Pack Connectors can withstand exposure to extreme temperatures, moisture, harsh engine compartment fluids and chemicals, making them ideal for industrial, heavy equipment and marine applications. Terminals are designed to mate with appropriate cable seals.
The female connector (tower connector) and the male connector (shroud connector) lock together with dual-lock tangs to secure terminals firmly into the connector housing, and ensure strong electrical conductivity. Weather Pack connectors are made of a self-lubricating silicone and are multi-ribbed to prevent moisture and other contaminants from entering the connector and causing terminal corrosion. The seal is placed on the wire and then the terminal is crimped to the seal.
SPECIFICATIONS
| APTIVE Part : | 15324980 |
| Terminal Family | Weather Pack |
| Cable Seal Type | Single Wire Seal |
| Seal Outside Diameter (mm) | 7.25 |
| Seal Inside Diameter (mm) | 0.80 |
| Cable Diameter (Min) | 2.81 |
| Cable Diameter (Max) | 3.49 |
| Length (mm) | 7.5 |
| Color | Grey |
| Material | ELAS VMQ SELF-LUB |
| Stiffness (Shore) | 50 |
| Oil Content (%) | 2 |
| Rib count | 3 |
