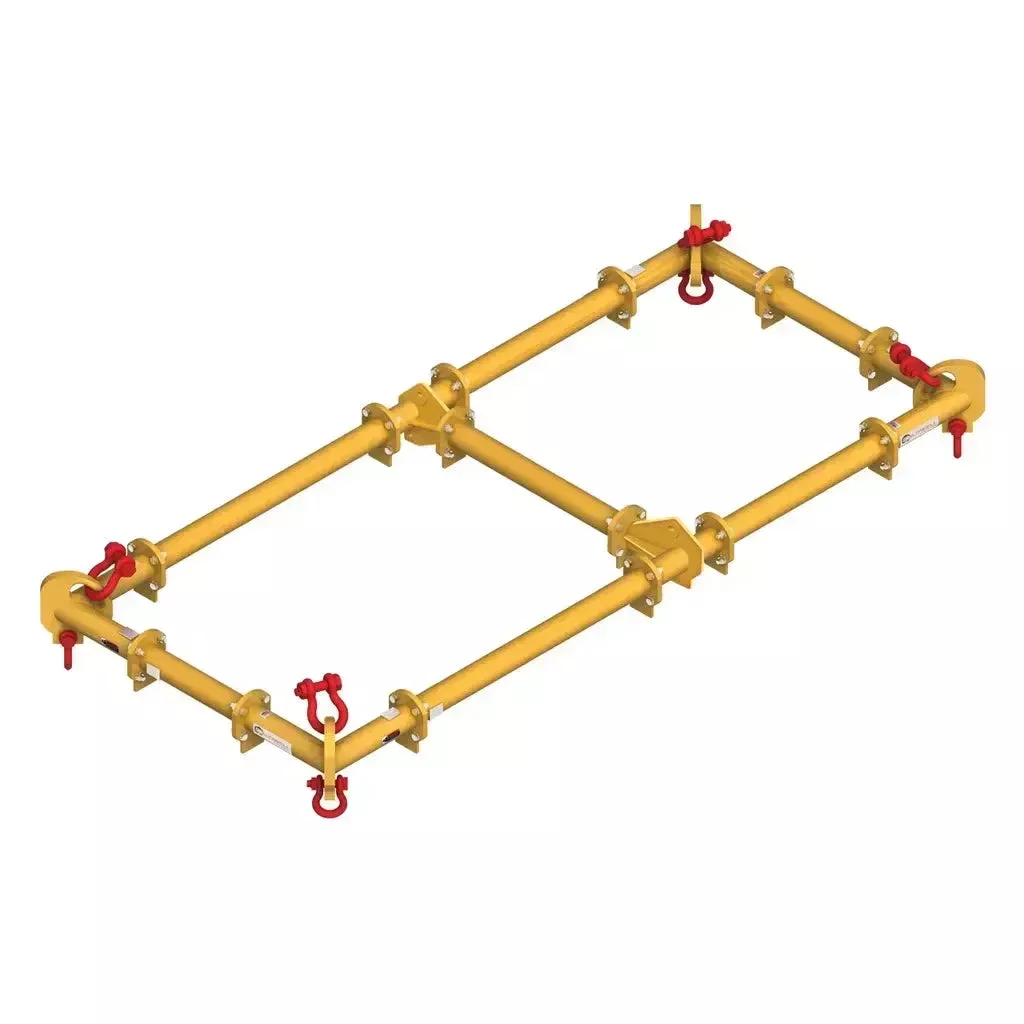

The Caldwell DURA-MOD® DM30-6 is a 30-metric ton modular 6-point box spreader beam system engineered for complex lifting applications requiring enhanced stability, flexibility, and load control.
Using modular spreader sections, T-sections, and corner fittings, operators can build custom lifting configurations tailored to specific load geometries and project requirements.
The knock-down modular design simplifies transportation and storage while providing exceptional strength and versatility for industrial lifting, construction, manufacturing, offshore, and heavy equipment applications.
Key Features
6-Point Box Configuration
- Six lifting points for superior load distribution
- Enhanced stability for large and irregular loads
- Customizable modular layouts
- Ideal for complex lifting operations
30-Metric Ton Capacity
- Heavy-duty lifting capability
- Designed for demanding industrial applications
- Suitable for large structural components
- Engineered for repetitive use in harsh environments
Modular Design
- Interchangeable spreader sections
- Configurable beam geometry
- Expandable system architecture
- Adaptable to changing lifting requirements
Knock-Down Construction
- Easier transportation and storage
- Reduced shipping costs
- Faster deployment on job sites
- Simplified inventory management
High Strength-to-Weight Ratio
- Optimized structural design
- Maximizes lifting performance
- Reduces overall system weight
- Improves handling efficiency
Compliance
The DM30-6 is designed to comply with:
- ASME B30.20
- ASME BTH-1
- Design Category B
- Service Class 0 (Class O)
Technical Specifications
| Specification | Details |
|---|---|
| Model | DM30-6 |
| System Type | Modular 6-Point Box Spreader Beam |
| Capacity | 30 Metric Tons |
| Configuration | 6-Point Box Spreader System |
| Design | DURA-MOD® Modular Construction |
| Compliance | ASME B30.20 / BTH-1 |
| Design Category | B |
| Service Class | 0 |
| Transport Design | Knock-Down Modular System |
| Rigging Compatibility | Chain, Wire Rope, Synthetic Slings |
