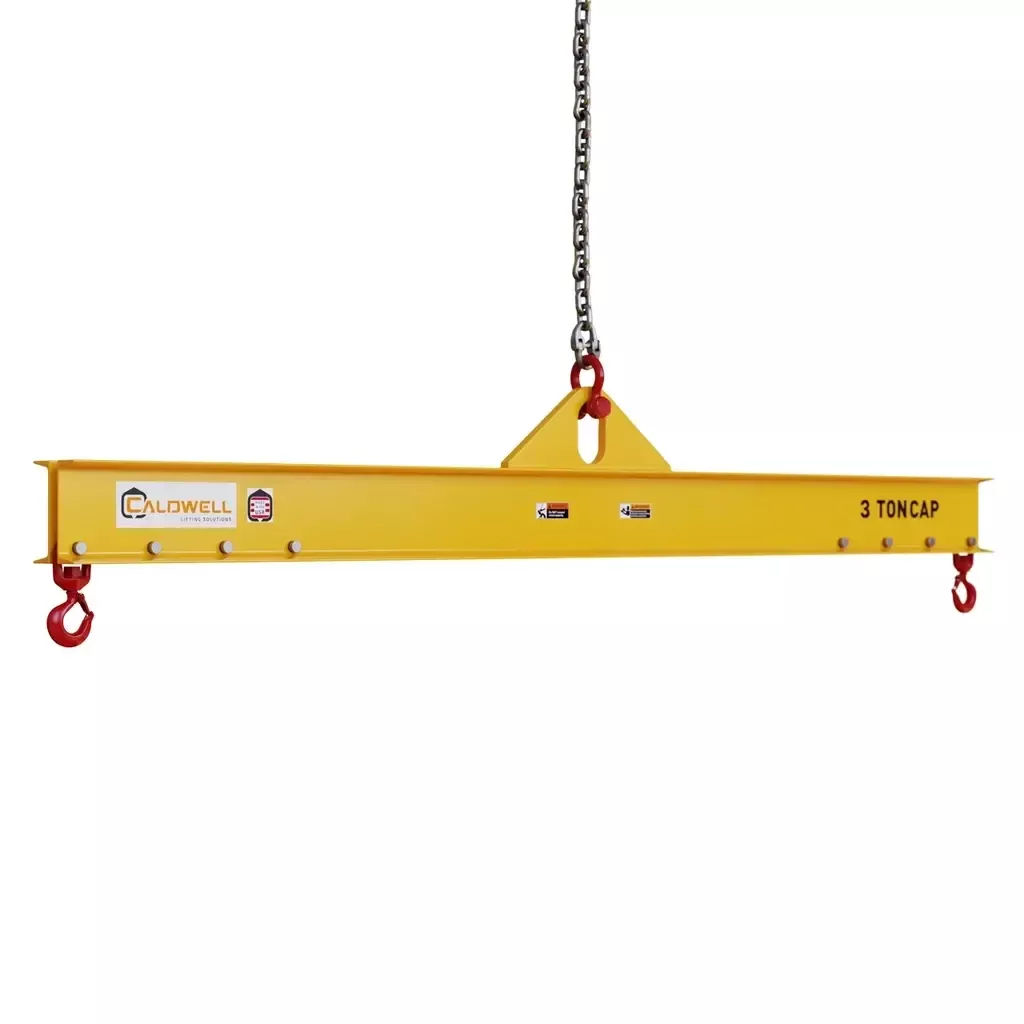

Caldwell Model 20 Low Headroom Multiple Spread Lifting Beam

Low Headroom Multiple Spread Lifting Beam for Cranes & Hoists

The Caldwell Model 20 Low Headroom Multiple Spread Lifting Beam is designed for lifting applications where overhead clearance is limited but safe, balanced load handling is critical. Engineered for use with overhead cranes and hoists, the Model 20 provides multiple lifting spreads, adjustable hook locations, and a compact low-headroom design that maximizes lifting height without sacrificing versatility. It is widely used in manufacturing, steel fabrication, precast concrete plants, warehouses, construction sites, and industrial facilities.

Manufactured in the USA by Caldwell, the Model 20 is built to meet demanding industrial lifting requirements while complying with applicable ASME below-the-hook lifting device standards.

Key Features & Benefits

Low Headroom Design

Designed specifically for applications where crane hook height is limited, allowing maximum lifting height without requiring additional rigging.

Multiple Adjustable Lift Spreads

Standard models include multiple hook positions to accommodate various load sizes.

• 3 ft. and 4 ft. beams include 2 lifting spreads
• 6 ft. beams and longer include 3 lifting spreads

The standard spread positions include:

• Outside spread
• Middle spread (outside spread minus 1 ft.)
• Inside spread (outside spread minus 2 ft.)

Swivel Hooks with Safety Latches

Heavy-duty swivel hooks come standard to simplify load positioning while integrated safety latches help improve lifting safety.

Wide Range of Capacities

Available in numerous capacities and beam lengths, allowing contractors and manufacturers to match the lifting beam to their specific application. Standard models are available from 1/2 ton up to 20 tons, with custom configurations available.

Heavy-Duty Steel Construction

Fabricated from structural steel and finished for long service life in demanding industrial environments.

Common Applications

Steel Fabrication

Safely lift structural steel members, fabricated assemblies, and weldments.

Precast Concrete

Handle wall panels, beams, columns, and architectural concrete products.

Manufacturing

Lift machinery, fabricated components, tooling, and production equipment.

Construction

Ideal for structural erection, equipment installation, and material handling.

Warehousing

Move oversized loads while maintaining balanced lifting points.

Industrial Maintenance

Lift pumps, motors, tanks, compressors, and heavy equipment during maintenance operations.

Standard Features

• Low headroom design
• Multiple adjustable lifting spreads
• Swivel hooks with safety latches
• Heavy-duty structural steel construction
• Fixed lifting bail
• Durable industrial finish
• Wide range of capacities and beam lengths
• Manufactured in the USA
• ASME compliant design

Available Options

Customize the Model 20 to meet specific lifting requirements with optional accessories including:

Extra Hook Holes

Additional lifting positions beyond the standard spread locations.

Fast Pins

Quick-release pins simplify repositioning hooks for changing load sizes.

Additional Hooks

Add multiple lifting points for specialized lifting applications.

Pin-Type Bail

Designed for cranes requiring a pin connection rather than a standard bail.

Shackle Lug

Available for applications requiring shackle connections instead of the standard lifting bail.

Industries Served

The Caldwell Model 20 is commonly used in:

• Steel fabrication
• Construction
• Manufacturing
• Precast concrete production
• Aerospace
• Shipbuilding
• Utilities
• Industrial maintenance
• Heavy equipment manufacturing
• Oil & gas facilities
