Product Description

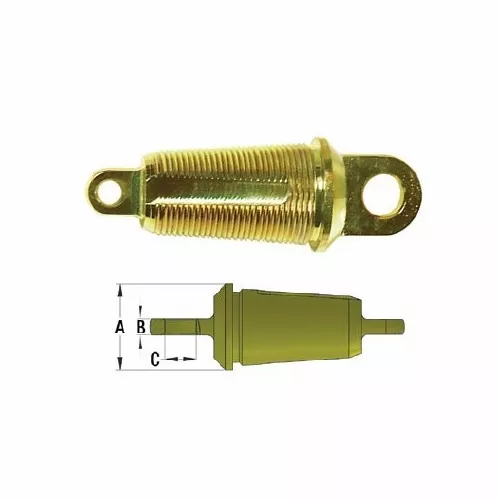

DCD 00604-250 Innerduct Pulling Eye 2-1/2 inchDuct Lug StyleDCD 00604-250 Innerduct Pulling Eye 2-1/2 inchDuct Lug StylePart 00604-250DescriptionLug Style Innerduct Pulling EyeNominal Duct Size2-1/2 inchMinimum Duct Inside Diameter2.41 inchMaximum Duct Inside Diameter2.58 inchA3 inchB1/2 inchC 15/16 inchWeight5.66 lbLug Style Pulling EyeThe lug style is recommended when attaching directly to a Line Swivel (00505 series)or other clevis type connector.Innerduct Pulling EyesThese products are designed to install polyethylene ducting using a screw-in tapered thread to grip the inside diameter of the duct. The pulling eyes are typically used to install innerduct insidea larger duct. However, the 00604 and 00605 series may also be used for directional drilling applications and because there are no moving parts, they are reliable and maintenance free.All of these pulling eyes are designed with cutting edges to actually cut a thread in the bore of the ducting as it is being screwed in, much the same way as using a tap to cut a thread in steel. This helps to ensure a reliable grip. Installation typically requires only seven or eight full threads of contact to give a grip stronger than the ducting itself.The pulling eyes are installed quickly and easily and require no special tooling. They are manufactured out of steel and plated for durability and corrosion resistance.
