Product Description

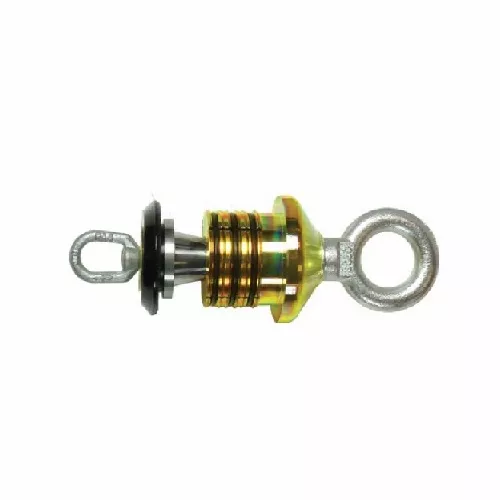

DCD 00616-125 Duct Puller 1-1/4 inchDuctDCD 00616-125 Duct Puller 1-1/4 inchDuctPart 00616-125 DescriptionExpanding Duct PullerNominal Duct Size1-1/4 inch3:1 Safe Working Load4,300 lbRear Eye Capacity (3:1 SWL)1,100 lbMinimum Inside Duct Diameter1.280 inch / 32.5 mmMaximum Inside Duct Diameter1.610 inch / 40.9 mmWeight1.3 lbDuct Sleeve Part No. 00625-125Note: Safe Working Load is based on the duct yield strength to protect from creep failure.Expanding Duct Puller – 00616 SeriesThe 00616/00617 series pullers were designed based on the older 00619 series pullers. After a customer request for a easier to handle puller we created a puller with a steel face plate instead of polyurethane. This design change has been made to satisfy customer request. As with the 00619 series, these pullers are designed with a larger expansion range in each unit as compared to the 00620 series.The puller comes standard with a duct plugger installed and complete with a rear pulling eye. Standard duct sleeves (00625 series) can also be used with this product.
