Product Description

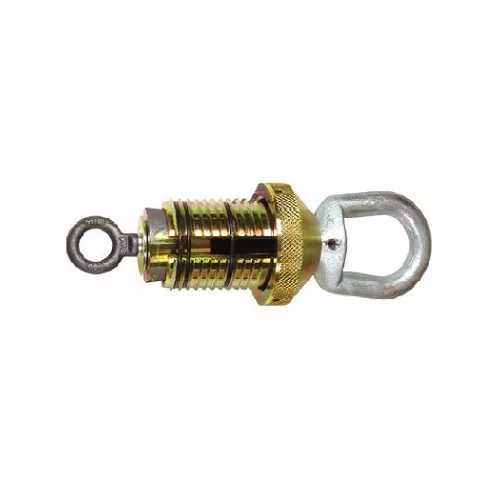

DCD 00621-140 Duct Puller 140 mm DuctDCD 00621-140 Duct Puller 140 mm DuctPart 00621-140DescriptionMetric Duct Puller140 mmNominal Duct Size40 mm3:1 Safe Working Load113.4 kNRear Eye Capacity (3:1 SWL)19.2 kNMinimum Inside Duct Diameter4.488 inch / 114.0 mmMaximum Inside Duct Diameter5.000 inch / 127.0 mmWeight14.3 kgDuct Sleeve Part No.00626-140Duct Plugger Part No.00631-140Metric Version00621 Duct Pullers are the same as the 00620 series, but are designed with jaws that allow sizing to metric duct sizes.Expanding Duct Puller – 00620 SeriesThese products are designed to grip polyethylene ducting using expanding jaws to grip the inside wall of the duct. This causes the pulling load to be spread around the circumference of the duct and allows a maximum load to be applied without damage to the ducting. Care should be taken at all times not to exceed the yield value of the ducting since this may cause permanent deformation to the duct as well as loss to the integrity of the polyethylene.On thin wall ducting, it is recommended that an outer duct sleeve be used to prevent the duct stretching during installation. A firmer and more stable grip will also be obtained when this is done. Use of a duct plugger will help to prevent mud and slurry from entering past the puller into the ducting.Duct wall thickness is normally designated by an SDR value. The lower the SDR value, the heavier the wall thickness. These products can be used on SDR 11 through SDR 17 ducting.Note: Safe Working Load is based on the duct yield strength to protect from creep failure.
