DCD 24000-150 Power-grip Pulling Eye 1500 MCM Lug Style

Product Description

---

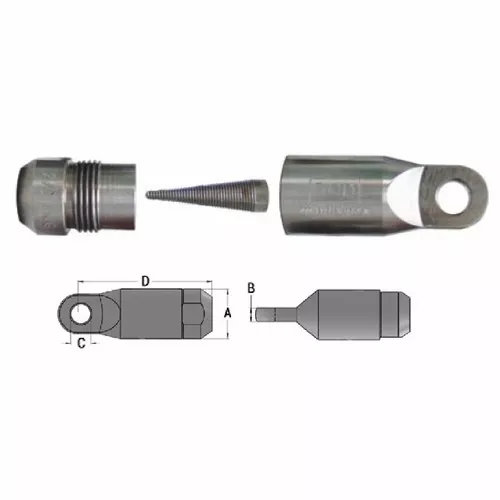

DCD 24000-150 Power-grip Pulling Eye 1500 MCM Lug StyleDCD 24000-150 Power-grip Pulling Eye 1500 MCM Lug StylePart 24000-150DescriptionPower-grip Pulling Eye 1500 MCM Lug StyleMaximum Cable Size1500 MCM Maximum Core Diameter1.41 inch35.8 mmA 2-3/4 inchB 3/4 inchC 1 -1/32 inchD 7-15/16 inchWeight6.13 lbLarger Power-Grips are machined from alloy steel and plated.Power-Grip Components include:Threaded Cone Nut 24006-150Tapered Insert 24005-125Body 24007-125Fits Line Swivels00505-035 to 00505-041The Power-Grip™ pulling eye is reusable and has a lug style head that will attach directly to a swivel. All materials are stainless steel. Only four body sizes are used to cover the range from 1/0 to 5000 MCM cable. Note that these pulling eyes should always be used with a Line Swivel (00505 series).
