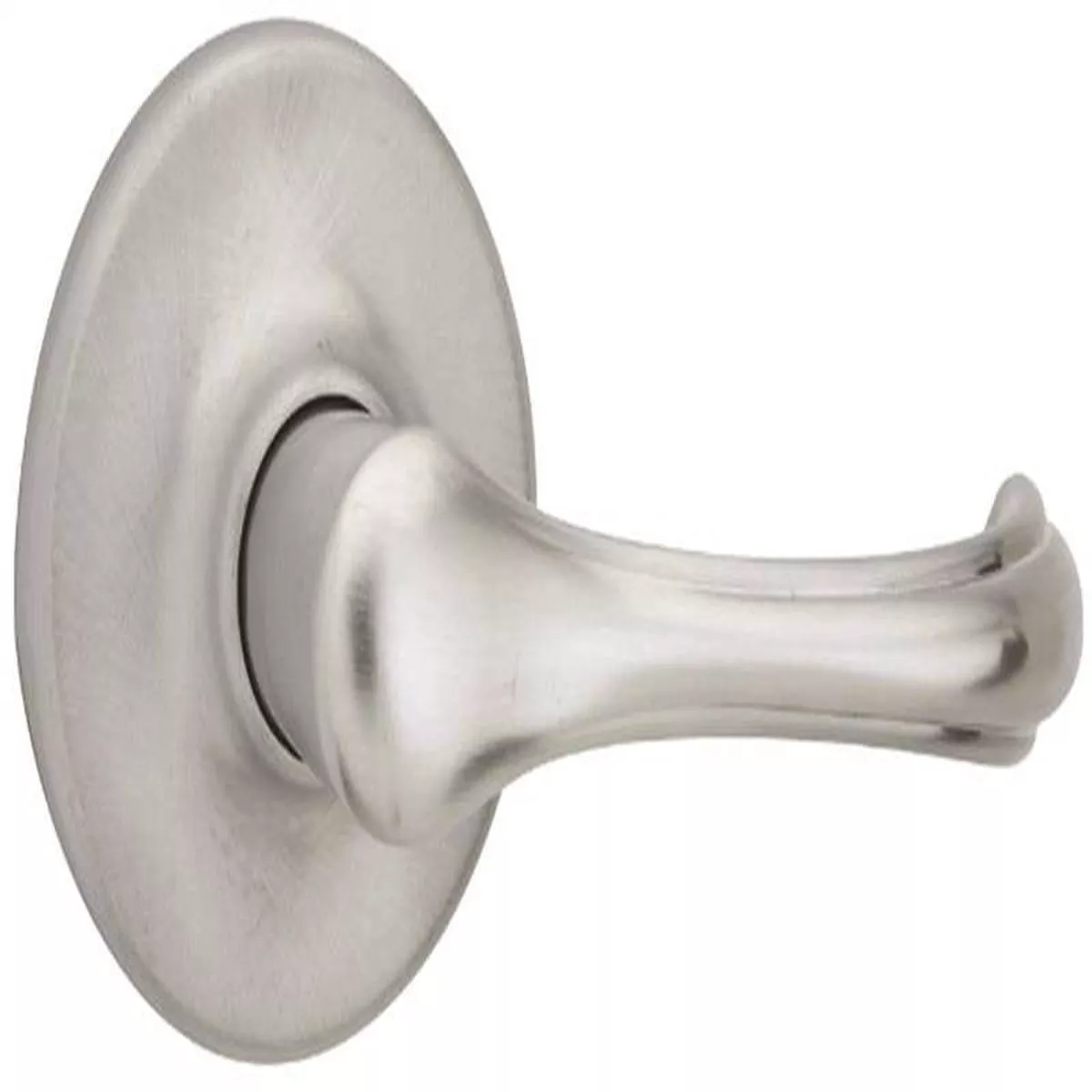

Door Lvr Pass Dorian200dnl-26d

For hall and closets. Both levers always free; no locking mechanism. For hall and closet doors. DOOR PREP: 2-1/8″ Cross Bore, 1″ Edge Bore, 1″ x 2-1/4″ Latch Face. BACKSET: adjustable to 2-3/8″ or 2-3/4″. DOOR THICKNESS: 1-3/8″ to 1-3/4″. 2-1/4″ doors optional. FACEPLATE: 1″ x 2-1/4″. STRIKE: 2-1/4″ full lip. BOLT: 1/2″ throw. HANDING: Non-handed. ANSI/BHMA: Grade 2. ADA: Satisfies section 4.13.9 ADA requirements.

• PASSAGE LEVER LOCKSETS
• Finish=Satin Chrome
• MAXIMUM SECURITY – DORIAN
