KEY FEATURES AND BENEFITS:•Easily installs from underneath the bar joist•?Easily installs on lower or upper truss chord of the bar joist•Plastic protection cap prevents dirt or structural coatings from obstructing the “push-to-install” mechanism•Prefabricated assemblies easily lift and lock into place, helping to save time and money•Easy “push-to-install” design allows installers to simply push the threaded rod through the mounting hole, instantly holding it in position•Works with slightly damaged threads and minor burrs on the threaded rod
Specifications
| Brand Name | nVent Caddy | Sub Brand | CADDY |

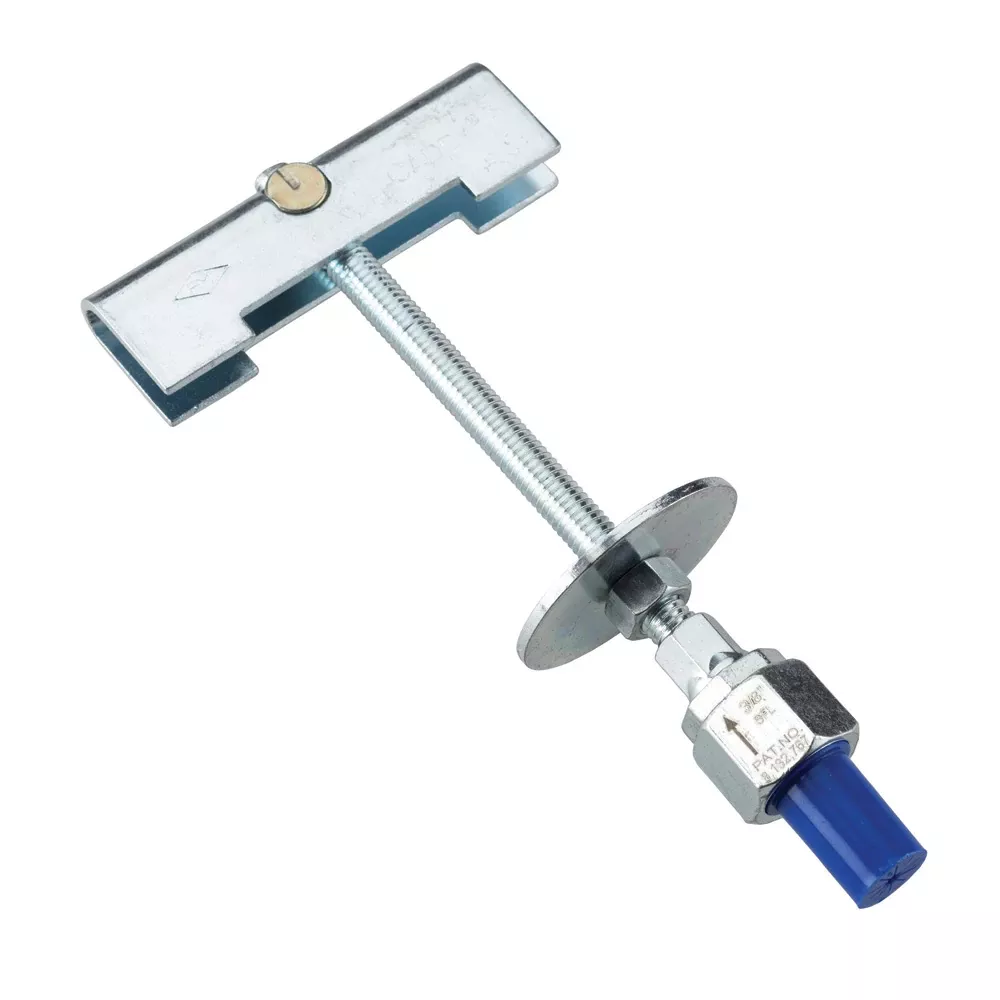

| Item Name | Rod Lock Bar Joist Hanger | Type | CADDY ROD LOCK Threaded Rod Mounting System |
| Size | 3/8 in Rod | Load Capacity | 1000 lb |
| Material | Steel | Color/Finish | Electro Galvanized |
| Mounting | Threaded | Dimensions | 3.7 in W x 7.4 in H |
| Packaging Quantity | 25/Pack | Application | For Acoustical, Datacom, Electrical, HVAC |
| UPC | 782856864288 |
