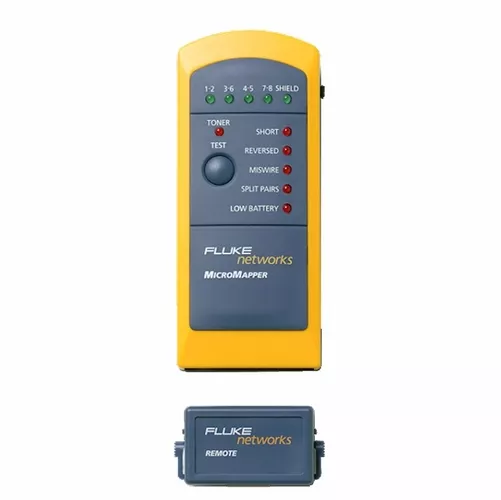

FLUKE MT-8200-49A MICROMAPPER WIREMAP TESTER

Product Description

---

FLUKE MT-8200-49A MICROMAPPER WIREMAP TESTERFLUKE MT-8200-49A MICROMAPPER WIREMAP TESTERPart MT-8200-49A MICROMAPPER WIREMAP TESTERDimensions 4.93 x 2.05 x 1.18 ft (125 x 52 x 30 m)Weight0.28 lbs (130 g)Minimum length for split pair detection is 2 ft (0.6m)Testing twisted pair cables over 656 ft (200 m) in lengthBattery (4) 1.5 Volt AAA Alkaline battery; low battery indication by LEDKey featuresCable tester verifies wiremaps and identifies faults with LEDsMicroMapper™ MT-8200-49A, remote, and patch cableRemote unit enables 1-person testing of installed cablesTwo tones for tracing hidden cablesTest twister pair cables for open circuits, shorts, crossed pairsThe MicroMapper™ MT-8200-49A is a hand-held cable tester that makes it easy to verify the integrity of Ethernet twisted paircables. Test for opens, shorts, reversed, crossed, and split pairs and scan for any existing faults in your cable. Trace cableshidden in ceilings, walls, floors, and bundles.
