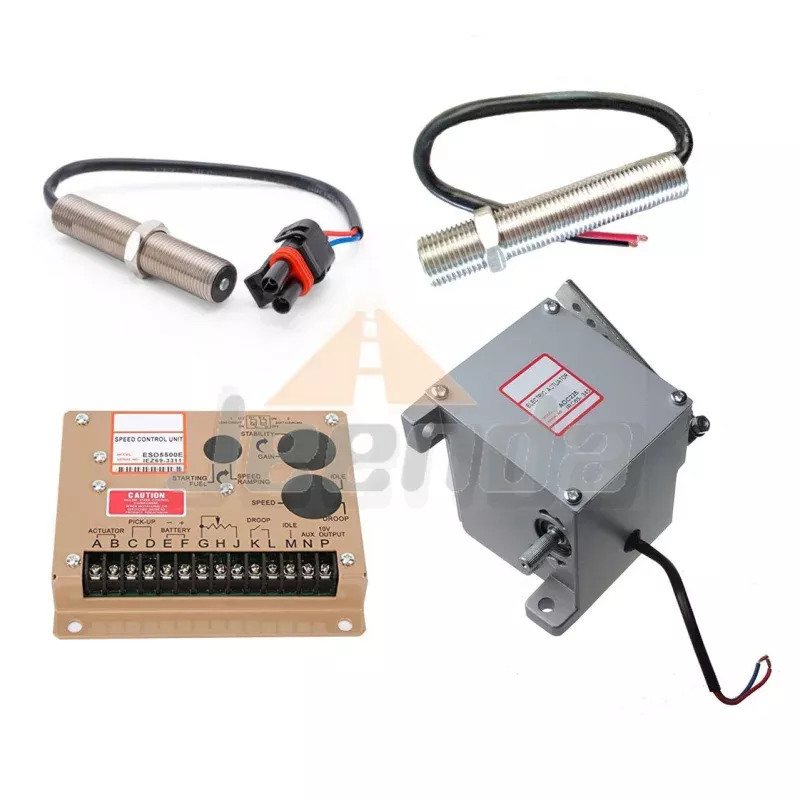

Free Shipping Actuator ADC225-12V+Controller ESD5500E +3034572 Speed Sensor +MSP675 Speed Sensor

Actuator ADC225-12V Details

• Working Pressure:12VDC
• Working Angle:28 degree.
• Working Current: Less than 4A
• DC resistance:4.5OM
• the maximum torque:4Nm
• Hit:20G
• Vibration: Less than 500Hz

Controller ESD5500E Details

Specification:

• Model: ESD5500E
• Speed range: 1KHz ~ 7.5KHz
• Thermostability: Max.+1%
• IDLE adjustment: 16020Hz ~ 95% of rated speed
• DROOP adjustment: The minimum position is 15Hz +6Hz/ load current change per ampere
• The maximum position is 400Hz +75Hz/ load current change per ampere
• External speed adjustment:200Hz (external 1KQ)
• Weight: Approx.600g/ 21.2oz

Input power:

• Supply 12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected)
• Polarity Negative Ground(Case Isolated)
• Power Consumption 50mA continuous plus actuator current
• Actuator Current Range @ 25-(Inductive Load) Min. 2.5 Amps, Max. 10 Amps continuous
• Speed Sensor Signal 0.5-120 V RMS
• Speed Switch Relay Contacts(N.O.and N.C.) 10Amp

Magnetic Pickup (MPU) 3034572 Speed Sensor Details:

• Measure range: 50-5000Hz
• Inductance:142MH+25%Thread Size:5/8-18 UNF-2A
• Tap Drill Size:37/64 inch
• Proximity to Gear Teeth:.028 in min. – .042 in max.(Approximately 1/2 to 3/4 turn)
• Temperature Range:-55 deg C to 105 deg C
• Output at Cranking Speed:1.5 volts AC minimum
• Maximum Output:30 volts AC
• Coil Resistance: 300 ohms maximum

MSP675 Magnetic Pickup MPU Generator Speed SensorDetails:

• Range:50-5000Hz
• Inductance value:142MH+25%
• Resistance value:300 MAX
• Thread:5/8-18UNF-2A
• Off-tooth distance:0.64-0.89mm
• Temperature range:-55 celsius to 105
• Idle output:1.5 volts AC Min
• MAX output:30 volts AC

Package1*12V Actuator+1*Speed Controller+1*3034572 Speed Sensor +1*MSP675Speed Sensor
