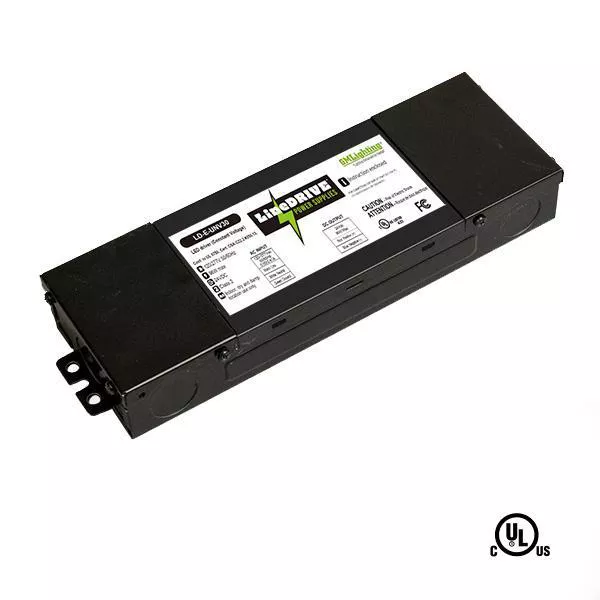

LineDRIVE Series 12VDC / 24VDC electronic LED power supplies are Class 2 rated and are designed to work with select LED fixtures that do not require dimming. Encased in a low profile powder coated steel enclosure that includes 4 knock-outs to enable easy installation, these LineDRIVE power supplies are especially suitable for LTR-S RGBW tape.
Specifications
| Brand Name | GM Lighting | Sub Brand | LineDRIVE |
| Item Name | LED Power Supply | Type | Auto Reset, Class 2, Electronic, Non-Dimmable |
| Color | Black | Input Voltage | 120/277 V |
| Input Current | 0.17 A at 277 V, 0.2 A at 240 V, 0.35 A at 120 V | Output Voltage | 12/24 VDC |
| Output Current | 1.25/2.5 A | Output Power | 30 W |
| Series/Model | LD-E | Material | Steel |
| Frequency Rating | 50/60 Hz | Efficiency (%) | 88 |
| Power Factor | 0.9 | Length | 6.1 in |
| Width | 3.35 in | Height | 1.33 in |
| Temperature Rating | -40 to 140 °F | Environmental Conditions | Dry Location Rated |
| For Use With | LTR-S RGBW Tape | Includes | (4) Knockouts |
| Standards | cETLus Listed, CSA C22.2 No. 250.2, UL Listed | UPC | 849951015219 |
