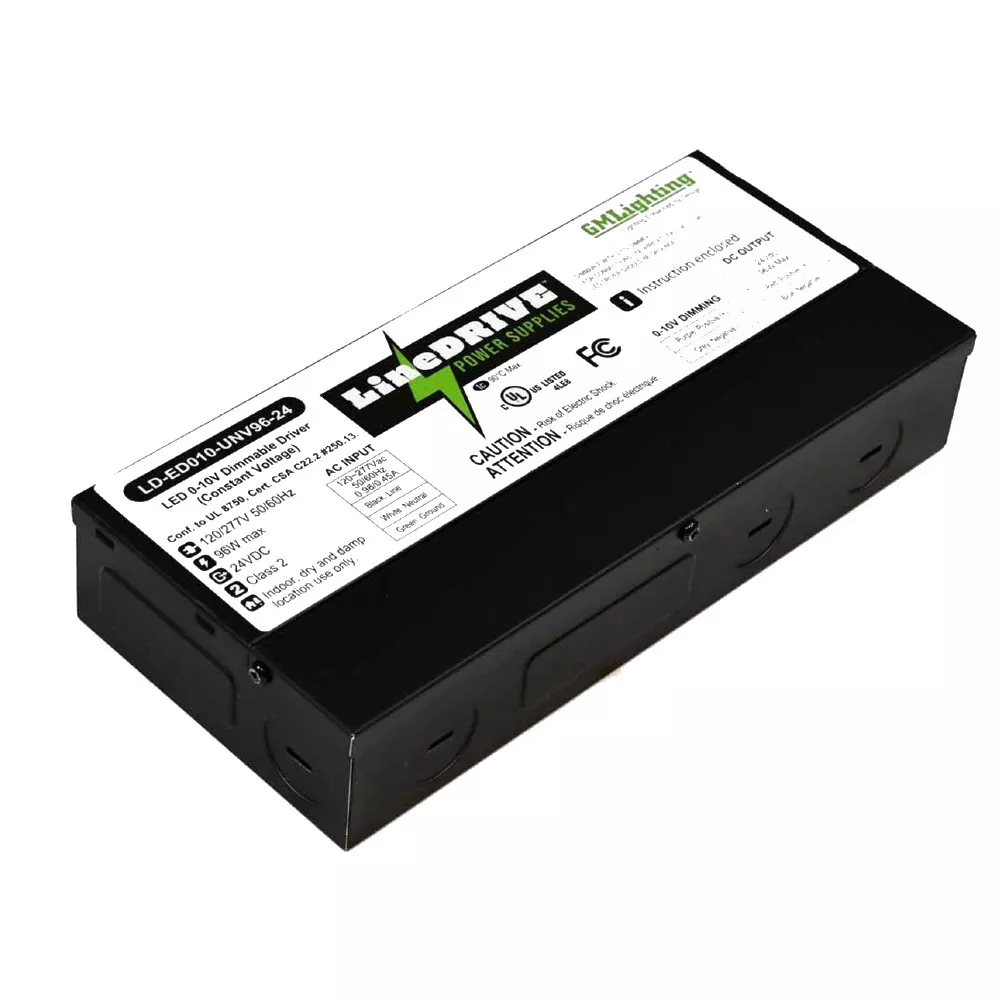

GM Lighting’s LineDRIVE 0-10V dimmable 60W and 96W LED driver is a compact and light weight powerhouse that features high efficiency that reduces total power consumption.
Specifications
| Brand Name | GM Lighting | Sub Brand | LineDRIVE |
| Item Name | LED Driver | Type | 0 – 10 V Dimmable, Electronic |
| Color | Black | Input Voltage | 120/277 V |
| Input Current | 0.98 A at 120 V, 0.52 A at 240 V, 0.45 A at 277 V | Output Voltage | 24 VDC |
| Output Current | 4 A | Output Power | 96 W |
| Series/Model | LD ED010 | Material | Steel |
| Efficiency (%) | 85% at 120 V, 88% at 240 V, 89% at 277 V | Power Factor | >0.94 |
| Length | 8-1/4 in | Width | 3-3/4 in |
| Height | 1.56 in | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | Dry Location Rated | Standards | UL Listed, CSA C22.2 No. 250.2, Class 2 Certified |
| UPC | 849951015363 |
