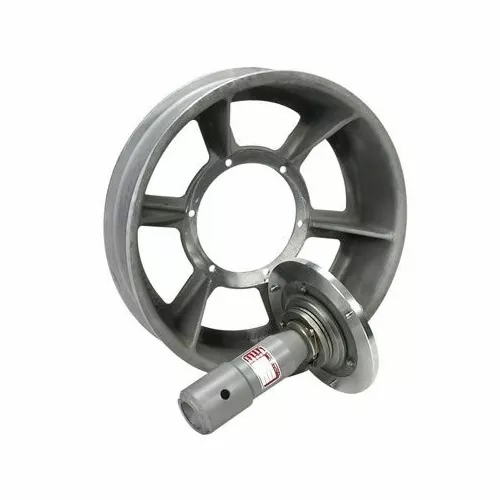

GMP General Machine Products 70391 CAPSTAN FO 25 inch500 LBS

Product Description

---

GMP General Machine Products 70391 CAPSTAN FO 25 inch500 LBSGMP General Machine Products 70391 CAPSTAN FO 25 inch500 LBSGENERAL MACHINE PRODUCTS70391 CAPSTAN FO 25″ 500 LBSoffers you a choice of several lightweight aluminum alloy units that mount on a standard 2- 7/16 in. (62 mm) diameter drive shaft with either a bayonet or a cross pin type of connection.These capstans can be used as end pullers or mid-assist booster pullers that will allow long, straight-through, splice-free pullsOffered with a torque limiter between the drive spindle and the inner hub, factory set at standard 600 pounds-force (2669 N-force), but may be calibrated to other torque values, if requestedAlso available with a steel shaft and no torque limiter for no-slip applications with a maximum rated load of 1500 lbs. (6672 N)*Can also be used with Fiber Optic Cable Blowers to place longer lengths of cable without splicing.P/NWorking Dia. Working Width Pull Weightin.mm in.mm lbs-forceNewtons lbs.kgs——————————————————————————–15472 25 635 5 127 600 2669 80 3415479 25 635 5 127 1000 4448 100 45 15470 25 635 5 127 n/a* n/a* 86 3970351 32 813 7.5 190 600 2669 80 37 70381 32 813 7.5 190 750 3336 80 3770471 32 813 7.5 190 1000 4448 80 37 70472 32 813 7.5 190 n/a* n/a* 86 3970473 40 1016 7.5 190 600 2669 135 61 70475 40 1016 7.5 190 1000 4448 135 6170478 40 1016 7.5 190 n/a* n/a* 100 45 * = Custom settings as required by user
