Product Description

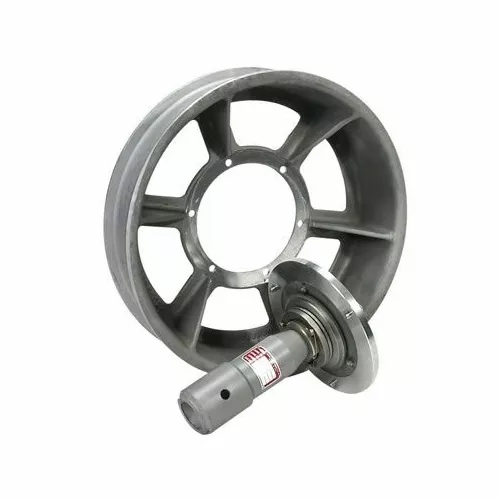

GMP General Machine Products 70472 CAPSTAN FO 32 inchW/DRV SPINDLEGMP General Machine Products 70472 CAPSTAN FO 32 inchW/DRV SPINDLEGENERAL MACHINE PRODUCTS70472 CAPSTAN FO 32″ WITHDRIVE SPINDLE offers you a choice of several lightweight aluminum alloy units that mount on a standard 2- 7/16 in. (62 mm) diameter drive shaft with either a bayonet or a cross pin type of connection.These capstans can be used as end pullers or mid-assist booster pullers that will allow long, straight-through, splice-free pullsOffered with a torque limiter between the drive spindle and the inner hub, factory set at standard 600 pounds-force (2669 N-force), but may be calibrated to other torque values, if requestedAlso available with a steel shaft and no torque limiter for no-slip applications with a maximum rated load of 1500 lbs. (6672 N)*Can also be used with Fiber Optic Cable Blowers to place longer lengths of cable without splicing.P/NWorking Dia. Working Width Pull WeightP/Nin.mm in. mm lbs-forceNewtons lbs.kgs15472 25 635 5 127 600 2669 803415479 25 635 5 127 1000 4448 100 4515470 25 635 5 127 n/a* n/a* 86 3970351 32 813 7.5 190 600 2669 80 3770381 32 813 7.5 190 750 3336 80 3770471 32 813 7.5 190 1000 4448 80 3770472 32 813 7.5 190 n/a* n/a* 86 3970473 40 1016 7.5 190 600 2669 135 6170475 40 1016 7.5 190 1000 4448 135 6170478 40 1016 7.5 190 n/a* n/a* 100 45* = Custom settings as required by user`
