Product Description

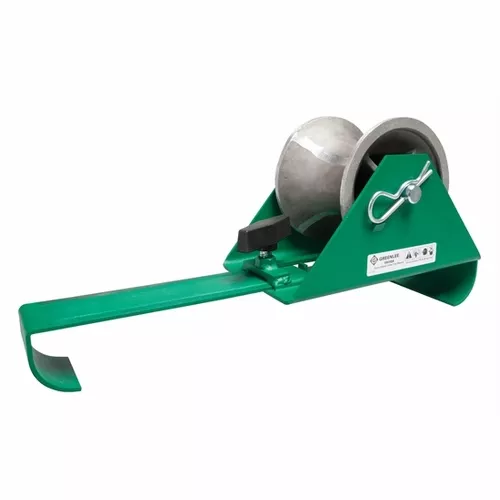

GREENLEE660QASHEAVE-TRAY, QUICK ADJUST (PKGD)783310027683 /52067580 NEWDESCRIPTION7x faster setup and disconnectAttaches to all varied size tray rung spacingNo loose piecesAdjustable Slide leg that can be extended to fit on tray rung spaces up to 20″ (508 mm)Set Screw Handle to easily lock and unlock adjustable sliding legEdge hook feet to grab tray more securelySteel frame easily attaches to cable tray up to 2″ 950.8 mm) thickCast aluminum sheave with robust shaft and bronze bushingsEasily handle forces of up to 100 lbs (45.4 kg)Designed and Assembled in USASPECIFICATIONS:Application :Use to assist pulling cables along non basket-style cable trays.Designed to aid loads during straight runs on the tray.Cable Size : 4.5″ (114 mm)Cable DiameterCapacity : 100 lb (45 kg)Height : 9″ (228.6 mm)Length : Retracted: 11-1/2″ (292.1 mm) Extended: 21-1/4″ (539.75 mm)Overall Height : 9″ (228.6 mm)Overall Length : Retracted: 11-1/2″ (292.1 mm) Extended: 21-1/4″ (539.75 mm)Pulling Capability : 100 lb (45 kg)Roller Opening Size : 4.5″ (114 mm)Weight : 11.5 lb (5.2 kg)Width : 7″ (177.8 mm)Cat No: 660QAUPC No: 783310027683PRODUCTS> Pulling> PULLING ACCESSORIES> Tray Rollers> SHEAVE-TRAY, QUICK ADJUST (PKGD)
