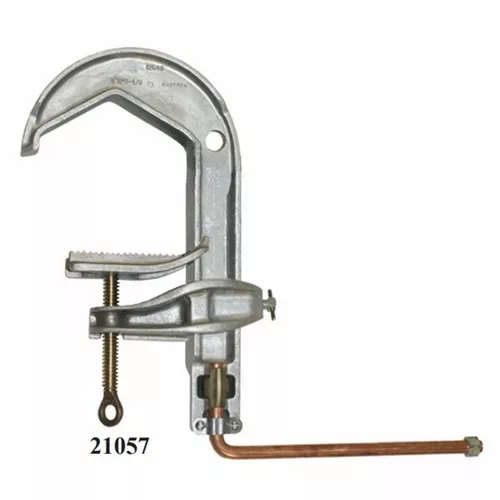

HASTINGS 21057 Substation Ground.Clamp Aluminum

Product Description

---

HASTINGS 21057 Substation Ground.Clamp AluminumHASTINGS 21057 Substation Ground.Clamp AluminumHASTINGS 21057 Substation Ground.Clamp AluminumGROUND CLAMPS FOR SUBSTATION GROUNDING -ALUMINUM– The grounding clamps with hanger studs enable substation maintenance crews to utilize their portable grounds on large bus by providing a fault current rated hanger stud as part of the clamp(Clamp numbers 21056, 21546-1, 12282)- Use of the hanger stud clamps could save cost of special ground assemblies made up for each substationSpecifications- Main Line Range :Maximum 6.625 DIA/ 9 1/2″ Copper Bar; Minimum 1/0 STR.398 DIA- Max. size cable :4/0- Max Fault Current Ratin: 54KA@ 15 Cycles, 39KA@ 30 Cycles-*5H RATED-Weight8.7 lbs.
