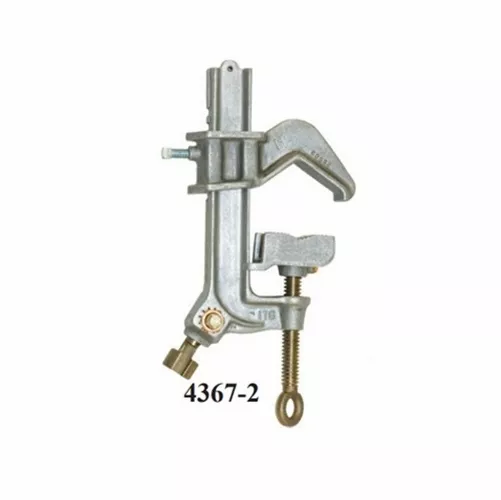

HASTINGS 4367-2Flat BUS Ground Clamp 4 in. x 1/2 in.

Product Description

---

HASTINGS 4367-2Flat BUS Ground Clamp 4 in. x 1/2 in.HASTINGS 4367-2Flat BUS Ground Clamp 4 in. x 1/2 in.HASTINGS 4367-2Flat BUS Ground Clamp 4 in. x 1/2 in.GROUND CLAMPS FOR SUBSTATION GROUNDING -ALUMINUM- The grounding clamps with hanger studs enable substation maintenance crews to utilize their portablegrounds on large bus by providing a fault current rated hanger stud as part of the clamp(Clamp numbers 21056, 21546-1, 12282)- Use of the hanger stud clamps could save cost of special ground assemblies made up for each substationSPECIFICATIONS:- MAIN LINE RANGE :MAXIMUM4 in. x 1/2 in. FLAT BUS OR 2.875 DIA BUS; MINIMUM 6 SOL .16 DIA- Max. size cable :1/0- Max Fault Current Rating:21KA@ 15 CYCLES,15KA@ 30 CYCLES- Terminal Type: Bolted- Weight2.4 lbs.
