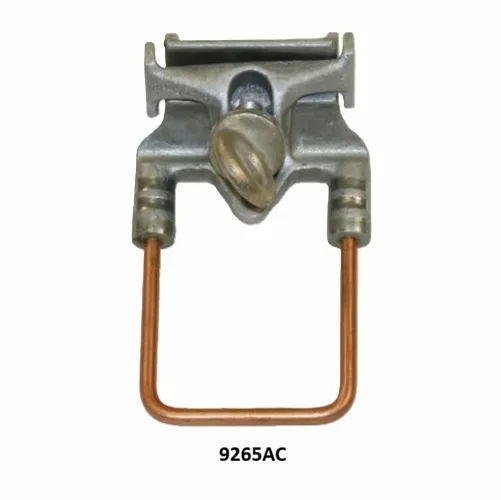

HASTINGS 9265ACWide Jaw Hot Stirrup AL-CU

Product Description

---

HASTINGS 9265ACWide Jaw Hot Stirrup AL-CUHASTINGS 9265ACWide Jaw Hot Stirrup AL-CUHASTINGS 9265ACWide Jaw Hot Stirrup AL-CUWIDE JAW HOT STIRRUPS- Wide jaws make this stirrup well adapted for ACSR and aluminum lines- Easily installed with all shotgun type hot sticks- Inside loop width – 2 1/2 inch- Maximum installation torque – 200 inch pounds- Stirrups are crimped with a 30 ton hydraulic pressSPECIFICATIONS – Type Connection :AL – CU- Main Line Size – Maximum Armored :1/0 ACSR- Main Line Size – Maximum Bare :397,500- Main Line Size – Minimum Bare :6 ACSR- Stirrup Bar Diameter:1/4 CUL- Maximum Amp Rating :380- Weight0.8 lb.
