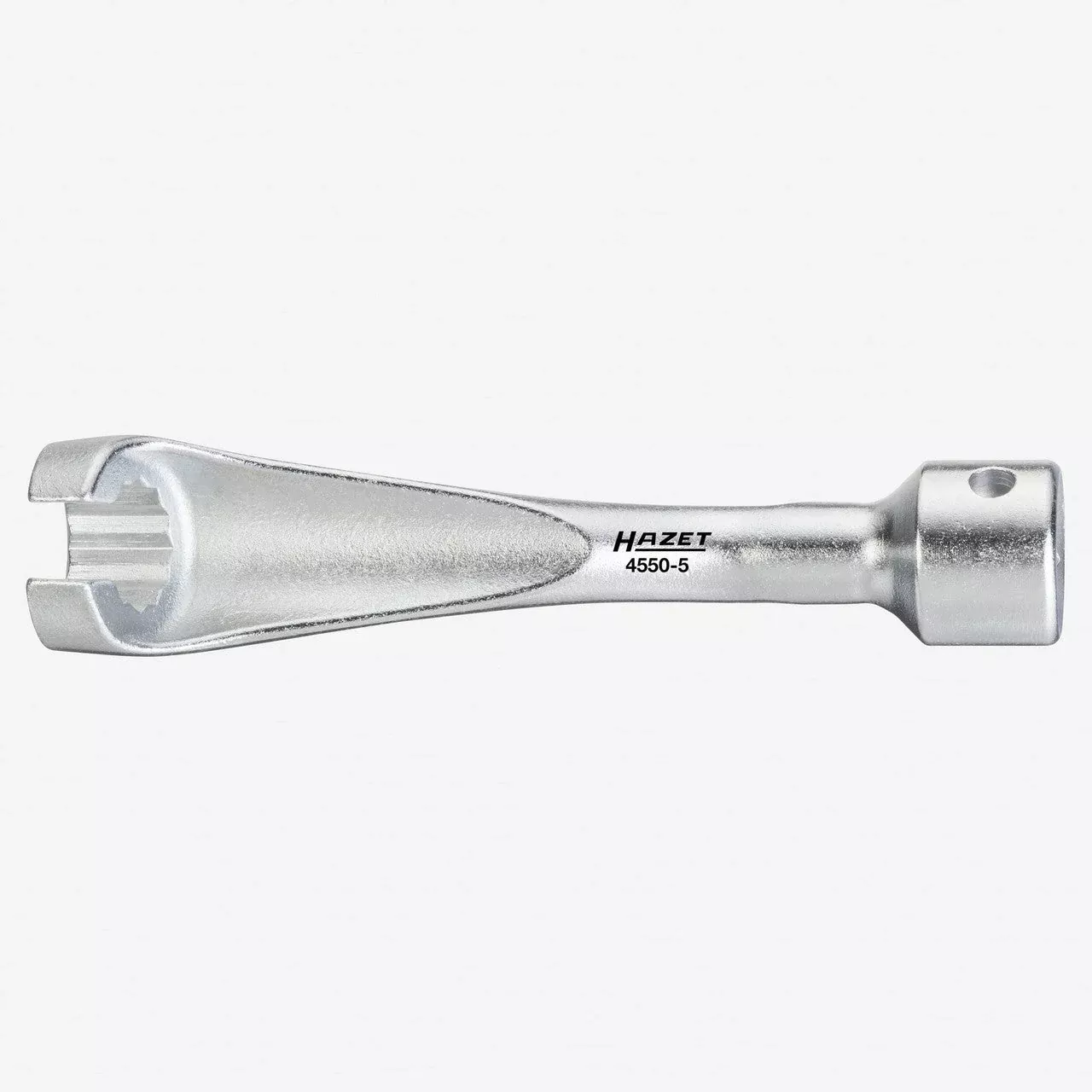

Hazet 4550-5 Injection line wrench

Hazet 4550-5 Injection line wrench
The special design of the socket ensures the injection line screw connection is properly accommodated
Application:
For injection lines s 14 mm
Open 12-Point Socket for the operation of screwed connections on injection lines
The torque-controlled screw tightening required by the manufacturer can be achieved by using a HAZET torque wrench (observe manufacturer specifications)
Surface: chrome-plated
Made in Germany
FIAT, CITROËN, PEUGEOT, RENAULT and IVECO models with Common Rail engines
As well as injection line screw connection e.g. on BMW, MERCEDES-BENZ, VW
Long style
Square drive 12.5 = 1/2″
Wrench size: 14
Total length: 119 mm
Drive: Square, hollow 12.5 mm (1/2 inch)
Output: Outside 12-point profile
Diameter d1 (output side): 27 mm
Diameter d2 (drive side): 22.9 mm
4550-5
