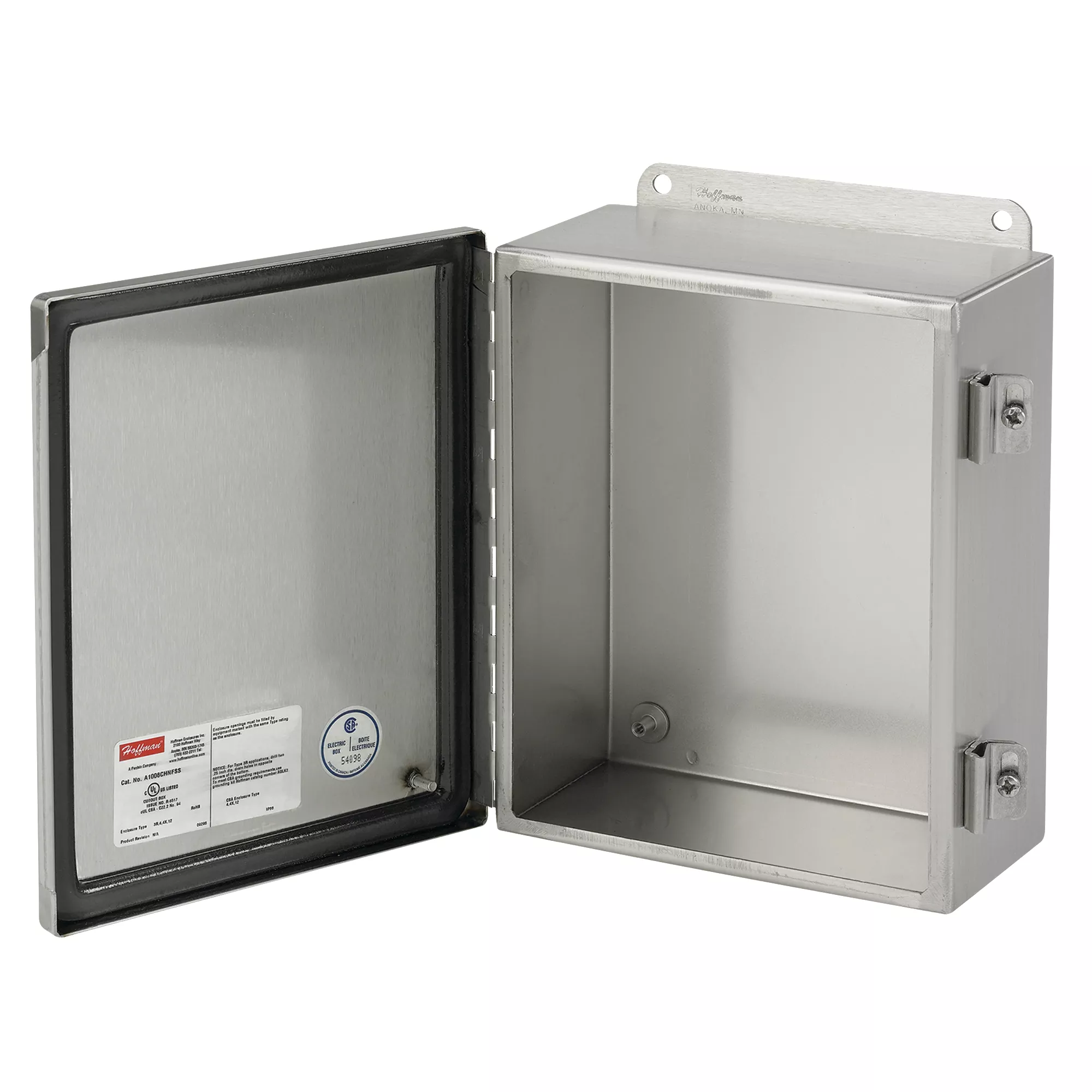

Used in either indoor or outdoor applications, these enclosures combine a rugged continuous hinge, seamless foam-in-place gasket and stainless steel screw-down clamps for a reliable seal that protects components from corrosive environments.SPECIFICATIONS:-Seams continuously welded and ground smooth -Seamless foam-in-place gasket -Stainless steel screws and clamps -Pull stainless steel continuous hinge pin to remove door -Weldnuts provided for mounting optional panels and terminal block kits -Bonding provision on door and body
Seams continuously welded and ground smooth
Seamless foam-in-place gasket
Stainless steel screws and clamps
Pull stainless steel continuous hinge pin to remove door
Weldnuts provided for mounting optional panels and terminal block kits
Bonding provision on door and body
Bonding provision on door and body
Specifications
Brand Name
nVent Hoffman
Sub Brand
Hoffman
Item Name
Junction Box
Type
Two Lock, Single Door
Width
305 mm
Depth
152 mm
Height
305 mm
Cover Type
Continuous Hinged with Clamp
Gauge
14 and 16
NEMA Rating
NEMA 3R, 4, 4X, 12, IP66
Mounting Type
Wall
Material
Stainless Steel
Finish
Brushed/Grinded
Color
Stainless Steel
Standards
cUL Listed, UL 50, 50E, UL File Number E27567, E61997, CSA C22.2 No 94
Application
Used in Either Corrosive or Outdoor Applications
UPC
783510564605
Packages
