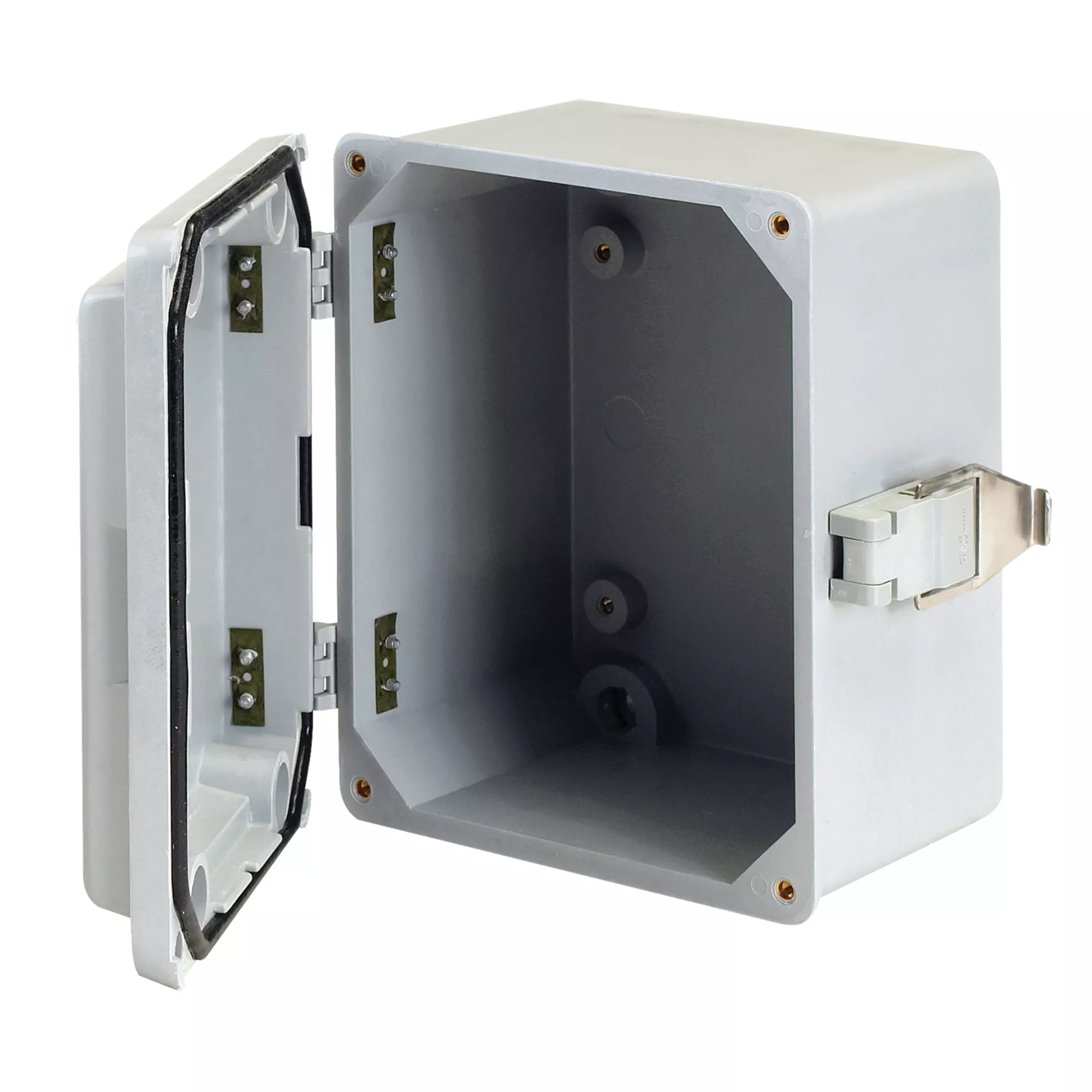

Solid cover enclosure with quick-release latches made of fiberglass. Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties. Fiberglass material is easily punched, drilled, filed or sawed. Seamless foam-in-place gasket assures water-tight and dusttight seal. Threaded internal bosses provided for mounting optional panels and terminal block kits. Scratch-resistant polycarbonate windows are permanently bonded in place. Screw-cover enclosures have easily removable covers attached to body with internal plated steel hinges. Cover securely fastens to the body with four captivated Type 316 stainless steel cover screws. Enclosures with quick-release latches have corrosion-resistant polyester hinges and polyester latches with a Type 316L stainless steel bail. Attached with Type 316 stainless steel screws. A Type 316L stainless steel padlock hasp is furnished with each enclosure. Sealing washers are furnished with enclosure.
Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
Fiberglass material is easily punched, drilled, filed or sawed
Seamless foam-in-place gasket assures water-tight and dust-tight seal
Threaded internal bosses provided for mounting optional panels and terminal block kits
Scratch-resistant polycarbonate windows are permanently bonded in place
Screw-cover enclosures have easily removable covers attached to body with internal plated steel hinges
Cover securely fastens to the body with four captivated Type 316 stainless steel cover screws
Enclosures with quick-release latches have corrosion-resistant polyester hinges and polyester latches with a Type 316L stainless steel bail attached with Type 316 stainless steel screws
A Type 316L stainless steel padlock hasp is furnished with each enclosure
Sealing washers are furnished with enclosure
Specifications
Brand Name
nVent Hoffman
Sub Brand
Hoffman
Item Name
Enclosure
Type
Single Lock, Single Door
Width
305 mm
Depth
203 mm
Height
406 mm
Cover Type
Screw or Hinged with Quick-Release Latch
NEMA Rating
NEMA 3, 3R, 4, 4X, 12, 13, IP66
Mounting Type
Wall
Material
Fiberglass
Finish
Untreated
Color
7035 Light Gray
Standards
UL, cUL Listed, UL 508A, UL File Number E61997, CSA C22.2 No 94
Application
Controls and Drives; Corrosive Environments
UPC
783510412708
