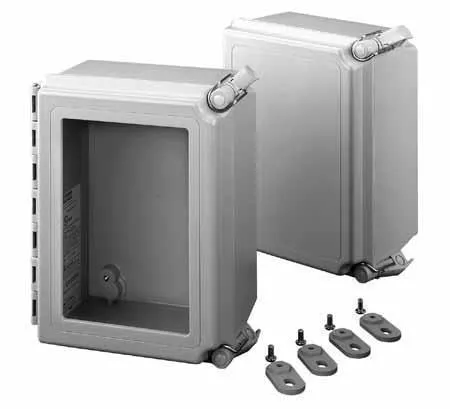

The efficient design and simple construction of these enclosures make them durable in corrosive environments, yet aesthetically pleasing. Corner latches provide unobstructed access. The continuous hinge provides a secure seal, and double latching creates added security.SPECIFICATIONS:-Compression-molded fiberglass has outstanding chemical- and temperature-resistance qualities and exhibits excellent weatherability and physical properties-Fiberglass is easily punched, drilled, filed or sawed-Gasket assures water-tight and dust-tight seal-Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure-Scratch-resistant polycarbonate windows are permanently bonded in place-Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits-Removable hinged cover attached to body with Type 316 stainless steel hinge pin-Screw-cover enclosures are secured with two captivated Type 316 stainless steel slotted cover screws-Enclosures with quick-release latches have corrosion-resistant polyester latches located in corners that provide unobstructed access to enclosure-Hinge pin and bail are corrosion-resistant Type 316 stainless steel-Padlock provisions included-Material is halogen-free
Compression-molded fiberglass has outstanding chemical- and temperature-resistance qualities and exhibits excellent weatherability and physical properties
Fiberglass is easily punched, drilled, filed or sawed
Gasket assures water-tight and dust-tight seal
Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure
Scratch-resistant polycarbonate windows are permanently bonded in place
Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits
Removable hinged cover attached to body with Type 316 stainless steel hinge pin
Screw-cover enclosures are secured with two captivated Type 316 stainless steel slotted cover screws
Enclosures with quick-release latches have corrosion-resistant polyester latches located in corners that provide unobstructed access to enclosure
Hinge pin and bail are corrosion-resistant Type 316 stainless steel
Specifications
Brand Name
nVent Hoffman
Sub Brand
Hoffman
Item Name
Enclosure
Type
Two Lock, Single Door
Width
406 mm
Depth
254 mm
Height
457 mm
Cover Type
Continuous Hinged with Quick-Release Latches, Screws, Hinge Pin
NEMA Rating
NEMA 4, 4X, 12, 13, IP66
Mounting Type
Wall
Material
Fiberglass
Finish
Untreated
Color
7035 Light Gray
Standards
UL, cUL Listed, UL 508A, UL File Number E61997, CSA C22.2 No. 94
Application
Controls and Drives; Corrosive Environments
UPC
783510318406
