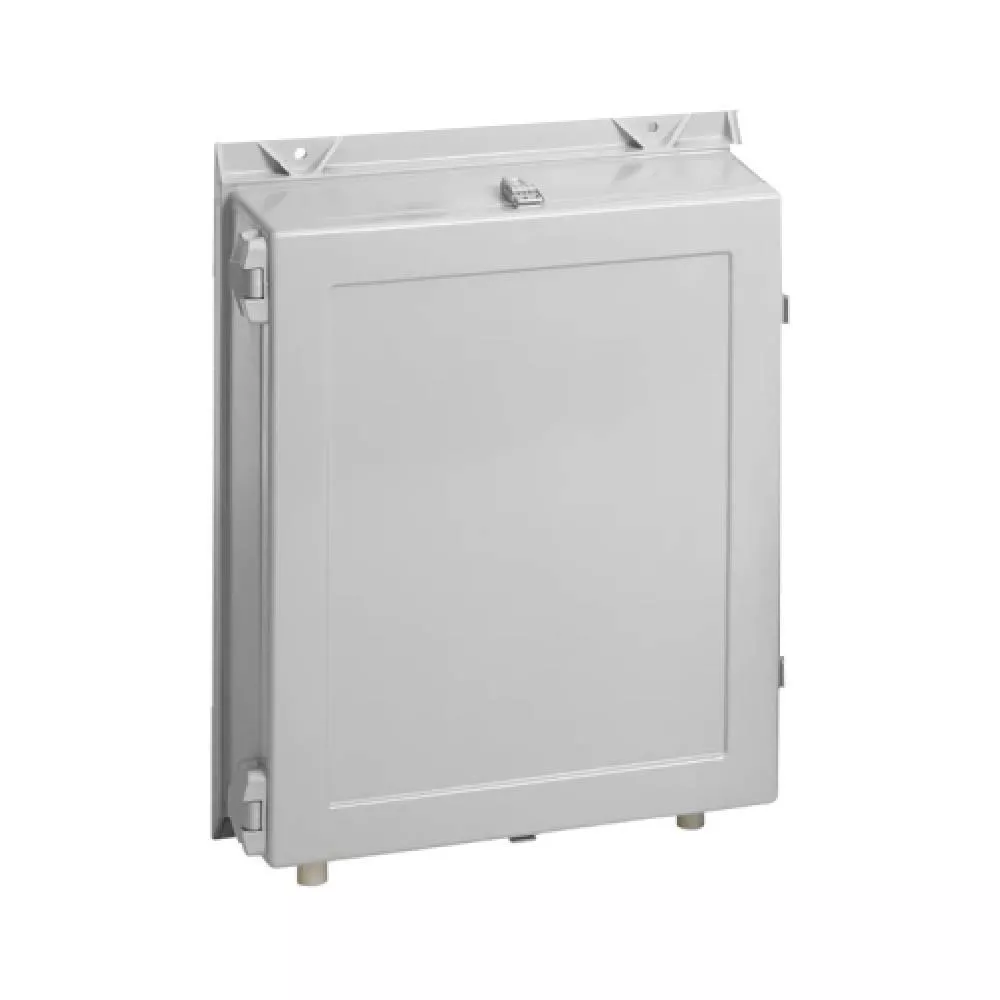

Applications: A full range of modification options are available for wall-mount fiberglass enclosures, including variable depths to accommodate larger controls. These enclosures feature padlockable polyester latches, or Hoffman’s exclusive POWERGLIDE™ Handle with 3-point latching, for ease of access with increased security.FEATURES:•Fiberglass-reinforced material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties•Type 316L stainless steel padlocking POWERGLIDE Handle on 3-point latch versions assures security and a water-tight seal while still allowing convenient access•Quick-release latch versions feature fiberglass-reinforced polyester latches with integral Type 316L stainless steel padlocking hasp•Seams are sealed; no holes or knockouts•Gasket assures water-tight and dust-tight seal•Fiberglass material is easily punched, drilled, filed or sawed•Data pocket is high-impact thermoplastic•Copper-flashed steel collar studs for mounting optional panels and terminal block kits
Fiberglass-reinforced material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
Type 316L stainless steel padlocking PowerGlide Handle on 3-point latch versions assures security and a water-tight seal while still allowing convenient access
Quick-release latch versions feature fiberglass-reinforced polyester latches with integral Type 316L stainless steel padlocking hasp
Seams are sealed; no holes or knockouts
Gasket assures water-tight and dust-tight seal
Fiberglass material is easily punched, drilled, filed or sawed
Data pocket is high-impact thermoplastic
Copper-flashed steel collar studs for mounting optional panels and terminal block kits
Specifications
Brand Name
nVent Hoffman
Sub Brand
Hoffman
Item Name
Enclosure
Type
Feed-Through, Hinged Cover, Straight Section
Width
20-1/4 in
Depth
10 in
Height
20.19 in
Cover Type
Hinged with Quick-Release Latch
NEMA Rating
NEMA 4X
Interior Panel Number
A20P20/A20P20G
Mounting Type
Wall
Material
Fiberglass
Finish
Matte
Color
Gray
Standards
CSA C22.2 No. 94, UL 508A, cUL, IEC 60529, IP66
Application
Controls and Drives; Corrosive Environments
UPC
783510295202
