Applications: Thermoelectric Coolers minimize downtime and component loss by removing heat around critical components within an enclosure. These compact, low-profile coolers using the Peltier effect allow for cooling of small indoor and outdoor enclosures. No condensers, compressors or filters are required making it a reliable solution for demanding low-maintenance environments.
Operates on the Peltier effect for cooling or heating
Contains no refrigerant, making it earth friendly
Filterless design reduces maintenance requirements
Compressor-free air conditioning for demanding indoor and outdoor applications
Prewired with simple terminal block for easy wiring connections
Shrouded and unshrouded models included in standard packages
Operating temperature range -40 C (-40 F) to 55 C (131 F)
Partial recess mount
DC Powered operation for 24V and 48V applications
Low profile design allows for mounting vertically and horizontally on any enclosure to avoid interference with internal components
Specifications
Brand Name
nVent Hoffman
Sub Brand
Hoffman
Item Name

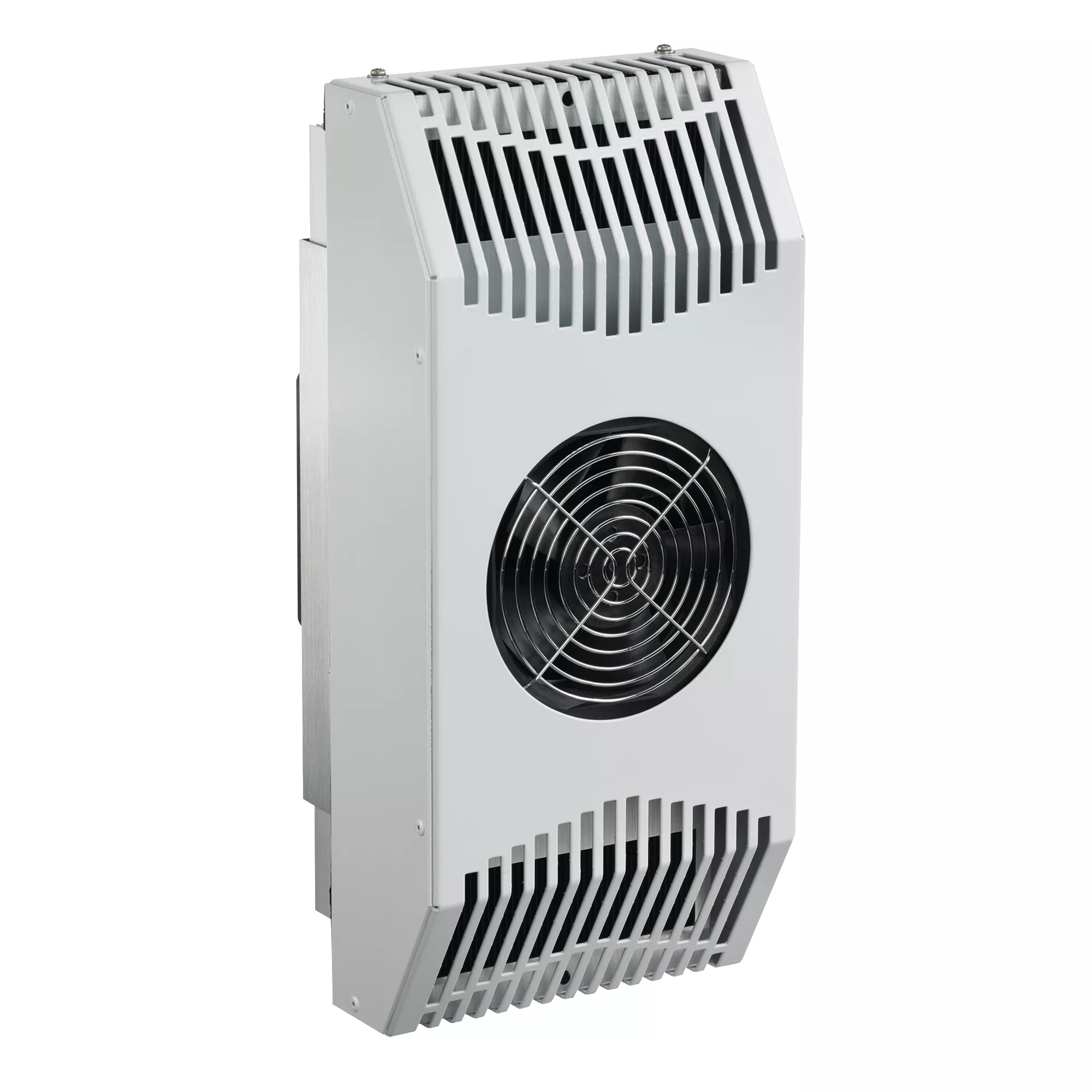

Thermoelectric Cooler with Painted Shroud
Type
Indoor/Outdoor, Compressor Free
Cooling Capacity
567 Btu
Voltage Rating
48 VDC
Flow Rate
Internal Loop: 62 ft³/min, External Loop: 86 ft³/min
Series
MCLT
Amperage Rating
7.6 A
Power Rating
166 W
Temperature Rating
-40 to 131 °F
Mounting Type
Partial Recess
Sound Level
68 dB
Enclosure Type
NEMA 12, 3R, 4, IP65
Material
Galvanized Steel Shroud, Anodized Aluminum Heat Sink
Color
RAL 7035 Light Gray/Semi-Textured Powder Coated
Dimensions
7.35 in W x 7.27 in D x 15.93 in H
Standards
UR/cUR File No. SA6453 Listed, CE, RoHS Compliant
UPC
783510210731
