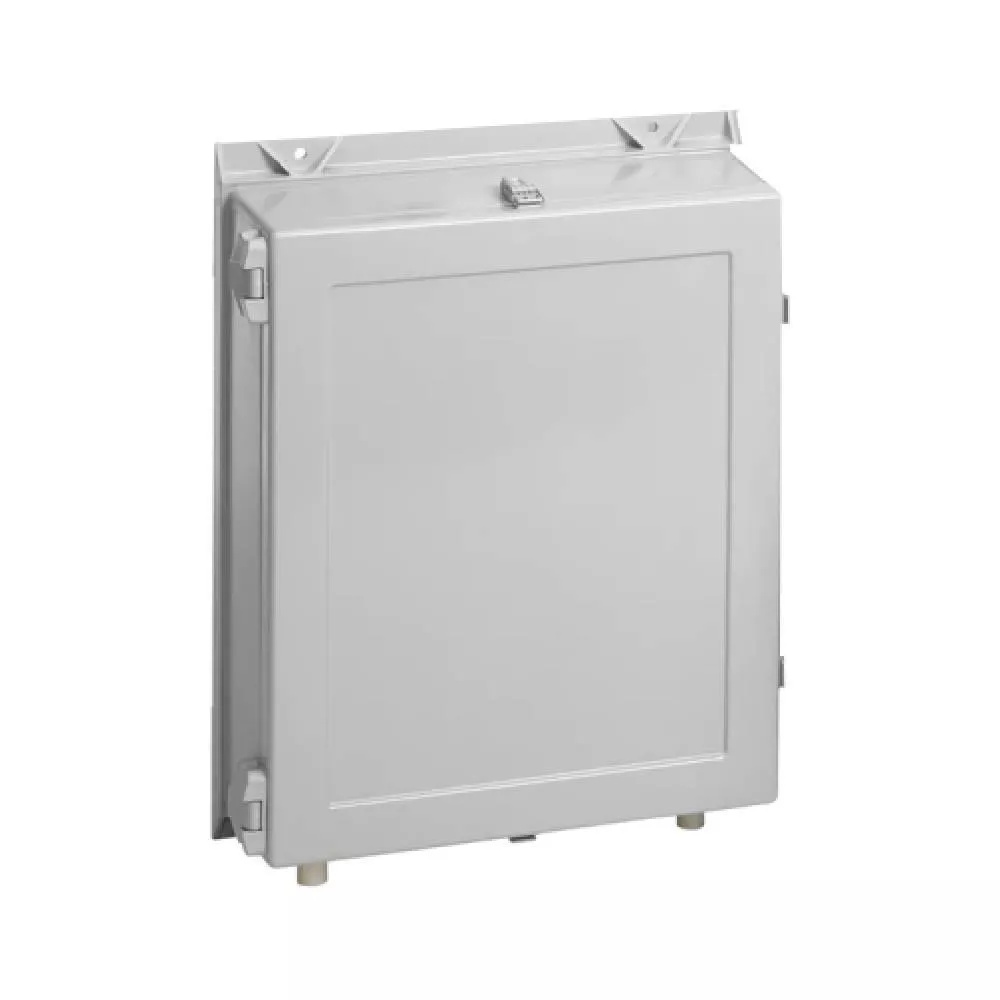

A full range of modification options are available for wall-mount fiberglass enclosures, including variable depths to accommodate larger controls. These enclosures feature padlockable polyester latches.SPECIFICATIONS:•Fiberglass-reinforced material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties•Quick-release latch versions feature fiberglass-reinforced polyester latches with integral Type 316L stainless steel padlocking hasp•Seams are sealed; no holes or knockouts•Gasket assures water-tight and dust-tight seal•Fiberglass material is easily punched, drilled, filed or sawed•Data pocket is high-impact thermoplastic•Copper-flashed steel collar studs for mounting optional panels and terminal block kits.
Fiberglass-reinforced material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
Type 316L stainless steel padlocking PowerGlide Handle on 3-point latch versions assures security and a water-tight seal while still allowing convenient access
Quick-release latch versions feature fiberglass-reinforced polyester latches with integral Type 316L stainless steel padlocking hasp
Seams are sealed; no holes or knockouts
Gasket assures water-tight and dust-tight seal
Fiberglass material is easily punched, drilled, filed or sawed
Data pocket is high-impact thermoplastic
Copper-flashed steel collar studs for mounting optional panels and terminal block kits
Specifications
Brand Name
nVent Hoffman
Sub Brand
Hoffman
Item Name
Enclosure
Type
Four Lock, Single Door
Width
614 mm
Depth
305 mm
Height
614 mm
Cover Type
Hinged with 3-Point Latch or Quick-Release Latches
NEMA Rating
NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13, IP66
Mounting Type
Wall
Material
Fiberglass
Finish
Untreated
Color
Gray
Standards
cUL Listed, UL 508A, UL File Number E61997, CSA C22.2 No 94, CSA File Number 42186, IEC 60529
Application
Controls and Drives; Corrosive Environments
UPC
783510227203
