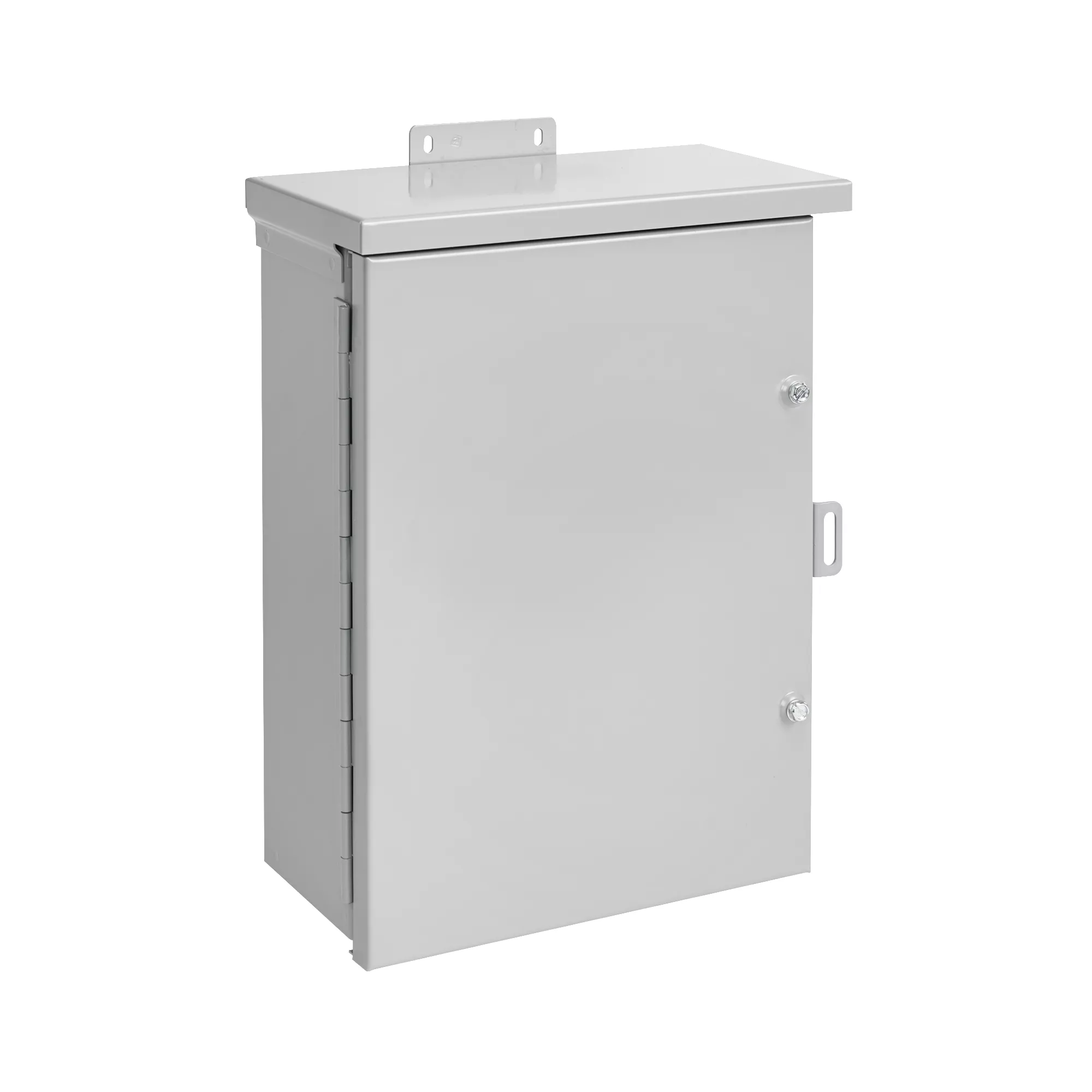

These enclosures have a size range of 16 x 12 x 6-in. to 48 x 36 x 16-in. and meet basic functionality requirements for applications that require protection from rain, sleet, snow or dripping water.PRODUCT FEATURES:-Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet -16 gauge plated steel continuous hinge has stainless steel pin -Cover fastened securely with captive plated steel screws -Collar studs provided for mounting optional panels -Hasp and staple provided for padlocking -No gasketing or knockouts
Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
16-gauge plated steel continuous hinge has stainless steel pin
Cover fastened securely with captive plated steel screws
Collar studs provided for mounting optional panels
Hasp and staple provided for padlocking
No gasketing or knockouts
Enclosures are finished with paint over plated surfaces
Specifications
Brand Name
nVent Hoffman
Sub Brand
Hoffman
Item Name
Enclosure
Type
Medium
Width
30 in
Depth
16 in
Height
30 in
Cover Type
Hinged
Gauge
16 or 14
NEMA Rating
NEMA 3R
Interior Panel Number
A30P30/A30P30PP
Material
Galvanized Steel
Finish
Polyester Powder Paint
Color
ANSI 61 Gray
Standards
CSA C22.2 No. 94, UL 50, UL 50E, cUL, IEC 60529, IP32
Application
For Applications that Require Protection from Rain, Sleet, Snow or Dripping Water
UPC
783510427702
