Home » Shop » hot sale » HOFFMAN 36.25x 30.25x 8.00Hinge-Cover with Quick-Release Latches – Type 4X Enclosure, Gray

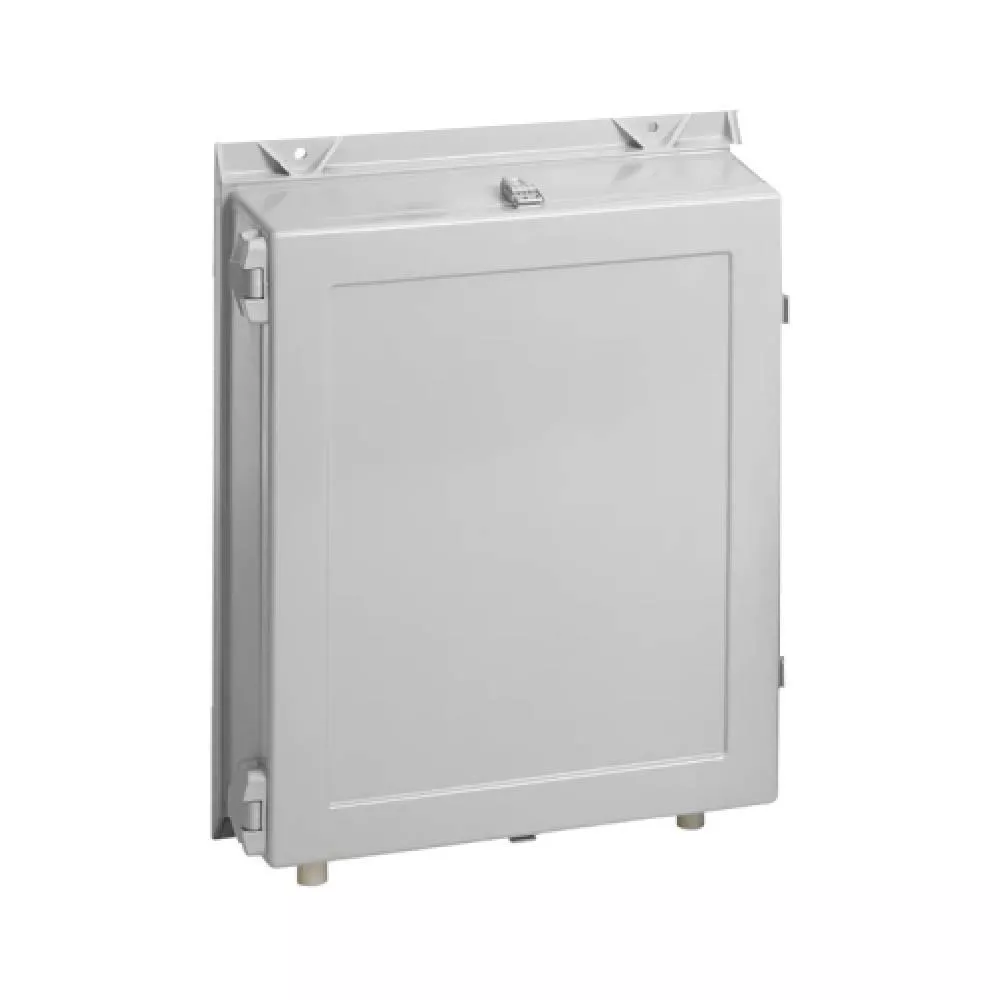

HOFFMAN 36.25x 30.25x 8.00Hinge-Cover with Quick-Release Latches – Type 4X Enclosure, Gray

Original price was: $2,134.46.Current price is: $1,229.04.

Sale!
SKU: hofa36h3008gqrlp Category:
Share

A full range of modification options are available for wall-mount fiberglass enclosures, including variable depths to accommodate larger controls. These enclosures feature padlockable polyester latches.SPECIFICATIONS:•Fiberglass-reinforced material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties•Quick-release latch versions feature fiberglass-reinforced polyester latches with integral Type 316L stainless steel padlocking hasp•Seams are sealed; no holes or knockouts•Gasket assures water-tight and dust-tight seal•Fiberglass material is easily punched, drilled, filed or sawed•Data pocket is high-impact thermoplastic•Copper-flashed steel collar studs for mounting optional panels and terminal block kits.

Fiberglass-reinforced material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties

Type 316L stainless steel padlocking PowerGlide Handle on 3-point latch versions assures security and a water-tight seal while still allowing convenient access

Quick-release latch versions feature fiberglass-reinforced polyester latches with integral Type 316L stainless steel padlocking hasp

Seams are sealed; no holes or knockouts

Gasket assures water-tight and dust-tight seal

Fiberglass material is easily punched, drilled, filed or sawed

Data pocket is high-impact thermoplastic

Copper-flashed steel collar studs for mounting optional panels and terminal block kits

Specifications

Brand Name nVent Hoffman Sub Brand Hoffman
Item Name Enclosure Type Gangable, Single Door, Five Lock
Width 30.25 in Depth 8 in
Height 36.25 in Cover Type Hinge-Cover with 3-Point Latch or Quick-Release Latches
NEMA Rating NEMA 4X, IP66 Mounting Type Wall
Material Fiberglass Finish Untreated
Color Gray Standards UL 508A Listed, Type 3, 3R, 4, 4X, 12, 13, File Number E61997, cUL Listed Per CSA C22.2 No 94, Type 3, 3R, 4, 4X, 12, 13, File Number E61997, Enclosure Flammability Evaluated Per UL 508A, NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13, IEC 60529, IP66, Meets NEMA Type 3R
Application Controls and Drives; Corrosive Environments UPC 783510227302
