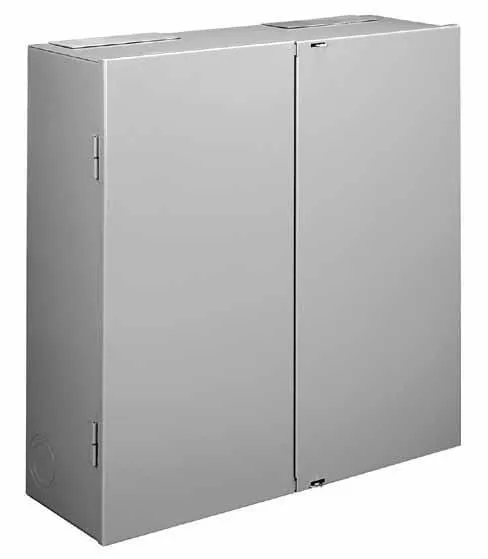

HOFFMAN 36 inch x 36 inch x 12 inch Code CSA 1 Meter Cabinet, Double Door

Name: HOFFMAN 36 inch x 36 inch x 12 inch Code CSA 1 Meter Cabinet, Double Door
Brand: bestsolidhardwaredepot.com
SKU: gesstlmc363612
Price: 218.43 USD
Availability: InStock

Original price was: $380.54.Current price is: $218.43.

Sale!

SKU: gesstlmc363612 Category: hot sale

Description

MC are designed to house metering transformers or for junction boxes. They are made from 16 Ga or 14 Ga steel. Doors are hinged and feature a padlockable provision. There is an opening on the top of the cabinet for meter connection. Metering cabinets come complete with removable inner back plates mounted on studs. Mounting holes are provided in the back of the cabinet. Cabinets are powder coated ASA-61 Grey inside and out. C.S.A. Certified / UL Listed

Gland plates on top of two-door enclosure for meter connection

Hinged door with pull latch and provision for padlocking

Mounting holes in back

14 or 16 gauge steel

Specifications

Brand Name	nVent Hoffman	Sub Brand	Hoffman
Item Name	Metering Cabinet	Type	Double Door, 2-Lock
Width	36 in	Depth	12 in
Height	36 in	Gauge	14 or 16
NEMA Rating	NEMA/EEMAC Type 1, IP30	Mounting Type	Wall
Material	Steel	Finish	Powder Coated
Color	Gray	Includes	(1) Pre-Punched Accessory, (1) Potential Transformer, (1) Current Transformer Panel and (4) Lug Splitter Block
Standards	CSA 42184, IEC 60529	Application	Indoor Applications
UPC	783510137885
