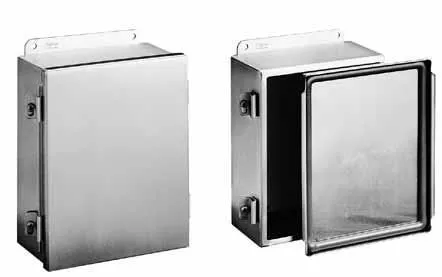

Used in either corrosive or outdoor applications, Clamp Cover Enclosures combine a seamless foam-in-place gasket with stainless steel screw-down clamps for a consistent and reliable seal, yet the cover is easily removed for access and modifications.SPECIFICATIONS:•16 and 14 gauge Type 304 or 316L stainless steel•Seams continuously welded and ground smooth•Seamless foam-in-place gasket•Stainless steel screws and clamps•Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger•Bonding provision on door and body
Seams continuously welded and ground smooth
Seamless foam-in-place gasket
Stainless steel screws and clamps
Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
Bonding provision on door and body
Bonding provision on door and body
Specifications
Brand Name
nVent Hoffman
Sub Brand
Hoffman
Item Name
Junction Box
Type
Two Lock, Single Door
Width
152 mm
Depth
102 mm
Height
152 mm
Cover Type
Clamp
Gauge
14 and 16
NEMA Rating
NEMA 3R, 4, 4X, 12, IP66
Mounting Type
Wall
Material
Stainless Steel
Finish
Brushed/Grinded
Color
Stainless Steel
Standards
cUL Listed, UL 50, UL File Number E27525, E61997, CSA C22.2 No 94
Application
Used in Either Corrosive or Outdoor Applications
UPC
783510835002
