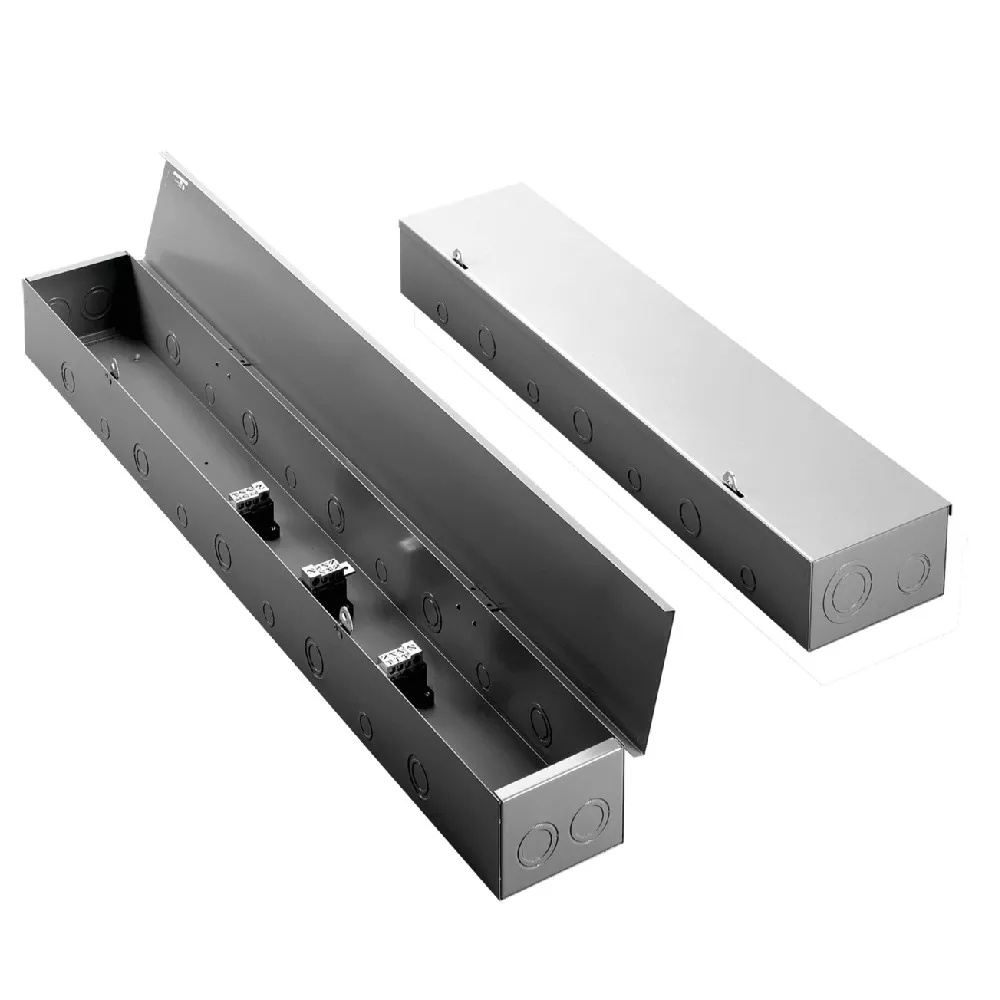

Splitter trough has 4:2 main lug with 600 A rated, 4 and 2 branch lugs with 175 A rated. Constructed of 16 or 14 gauge steel with ANSI 61 grey polyester powder paint finish inside and out. Contains hinged covers. Mounting holes are provided in back side. Includes single point ground lug. Splits feeder circuit conductors into multiple branch circuit conductors.
Various size knockouts on each side
Hinged covers
Mounting holes in back
Includes single-point ground lug
Ground Splitter (ground bar) accessory available
16 or 14 gauge steel
Specifications
Brand Name
nVent Hoffman
Sub Brand
Hoffman
Item Name
Splitter Trough
Type
Utility Box
Length
72 in
Width
279 mm
Depth
165 mm
Material
16/14 ga Steel
Finish
Powder Coated
Color
Gray
Mounting Type
Surface/Recessed
NEMA Rating
IP30, NEMA Type 1
Standards
CSA C22.2 No. 76, UL File Number 42184, IEC 60529
Application
For Three and Four Wire Power Distribution Systems
UPC
783510137083
