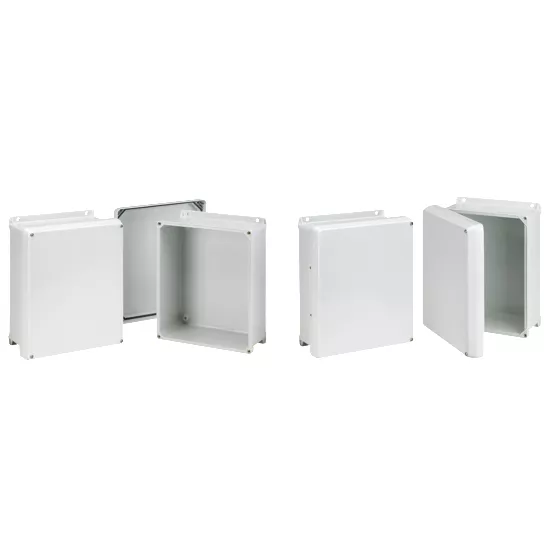

Flat Hinged Screw Cvr Encl, Bulletin Hj (fiberglass Hoffman J Series), Size/dims: 11.31×9.31×5.43, Material/finish: Fiberglass
Compression-molded fiberglass construction
Overlapping flat, solid-covers
Cover fastens with screws
Type 304 stainless steel piano hinges on hinged models
Integral mounting brackets
Enclosures protect equipment and operators from indirect electrical contact
Specifications
Brand Name
nVent Hoffman
Sub Brand
J-Series
Item Name
Enclosure
Type
Single Door
Width
196 mm
Depth
109 mm
Height
247 mm
Cover Type
Flat Hinged Screw
NEMA Rating
NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13, IP66
Series
J
Mounting Type
Wall
Material
Fiberglass, Plastic
Finish
Untreated
Color
7035 Light Gray
Standards
cUL Listed, UL 508A, UL File Number E54315, CSA C22.2 No 94, CSA File Number 217184
Application
Controls and Drives; Corrosive Environments
UPC
783510158774
