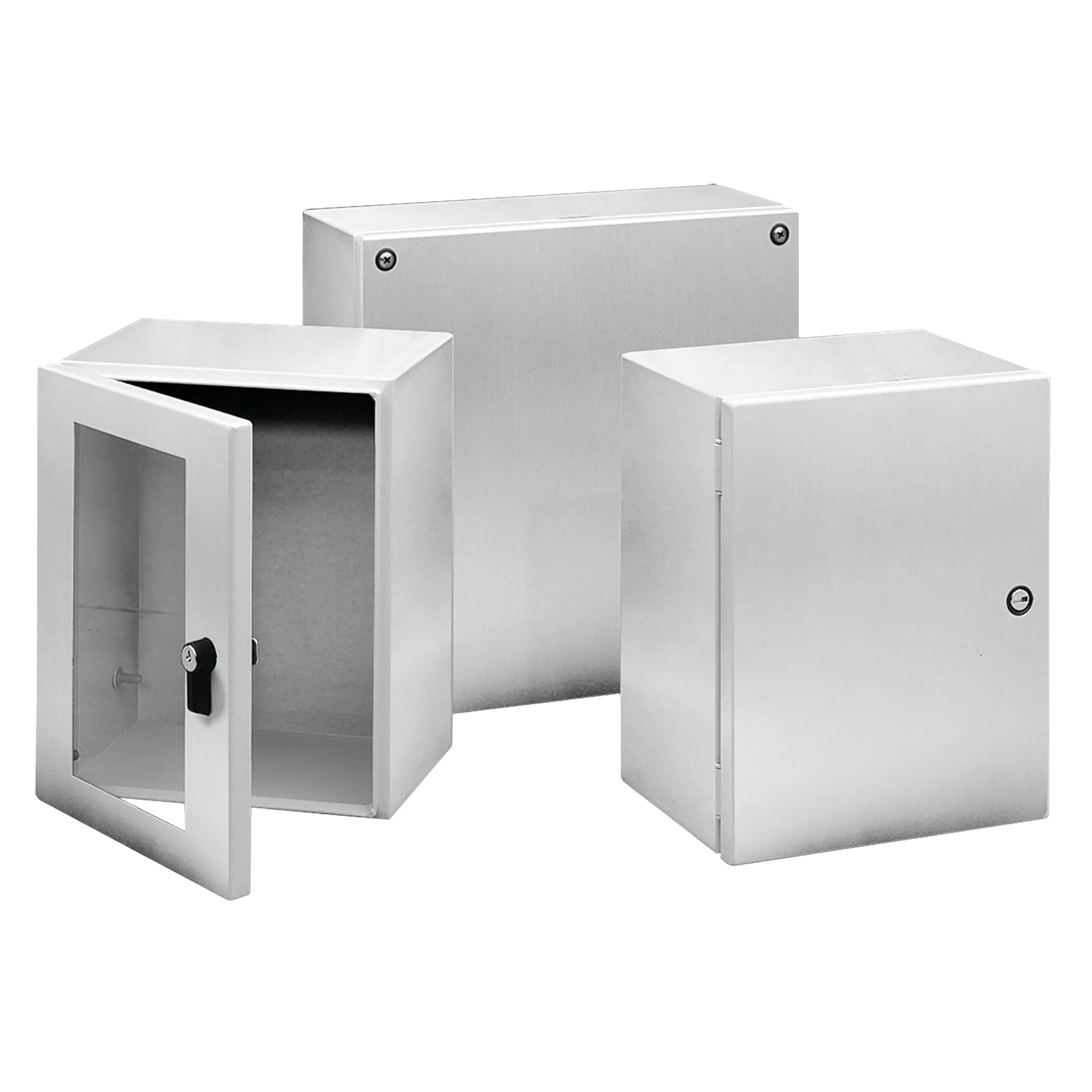

INLINE™ wall mount enclosure, Type 4X, Hinged- cover, 16 gauge steel cover and door and 14 gauge steel body, type 304 stainless steel, Seams continuously welded and ground smooth, 180° door opening, Removable type 316 stainless steel hinge pins, M6 Bonding provision on cover, Standard self-grounding, slotted, quarter-turn type 316 stainless steel latch system with double seal.
Seams continuously welded and ground smooth
External formed body flange trough
Large perimeter body opening
Fastening holes in back of body for direct mounting or optional external mounting brackets
Seamless foam-in-place gasket
M6 bonding provision on cover, M6 ground stud in body
Furnished hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
Furnished hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
Specifications
Brand Name
nVent Hoffman
Sub Brand
Inline™
Item Name
Enclosure
Type
Single Lock, Single Door
Width
200 mm
Depth
150 mm
Height
250 mm
Cover Type
Hinged with Quarter-Turn Latches
NEMA Rating
NEMA/EEMAC Type 4, 4X, 12, IP66
Mounting Type
Wall, Flush
Material
Stainless Steel
Finish
Brushed/Grinded
Color
Stainless Steel
Standards
UL, cUL Listed, UL 508A, UL File Number E61997, CSA File Number 42186, IEC 60529
Application
Controls and Drives; Hygienic Environments; Power Distribution
UPC
783510618308
