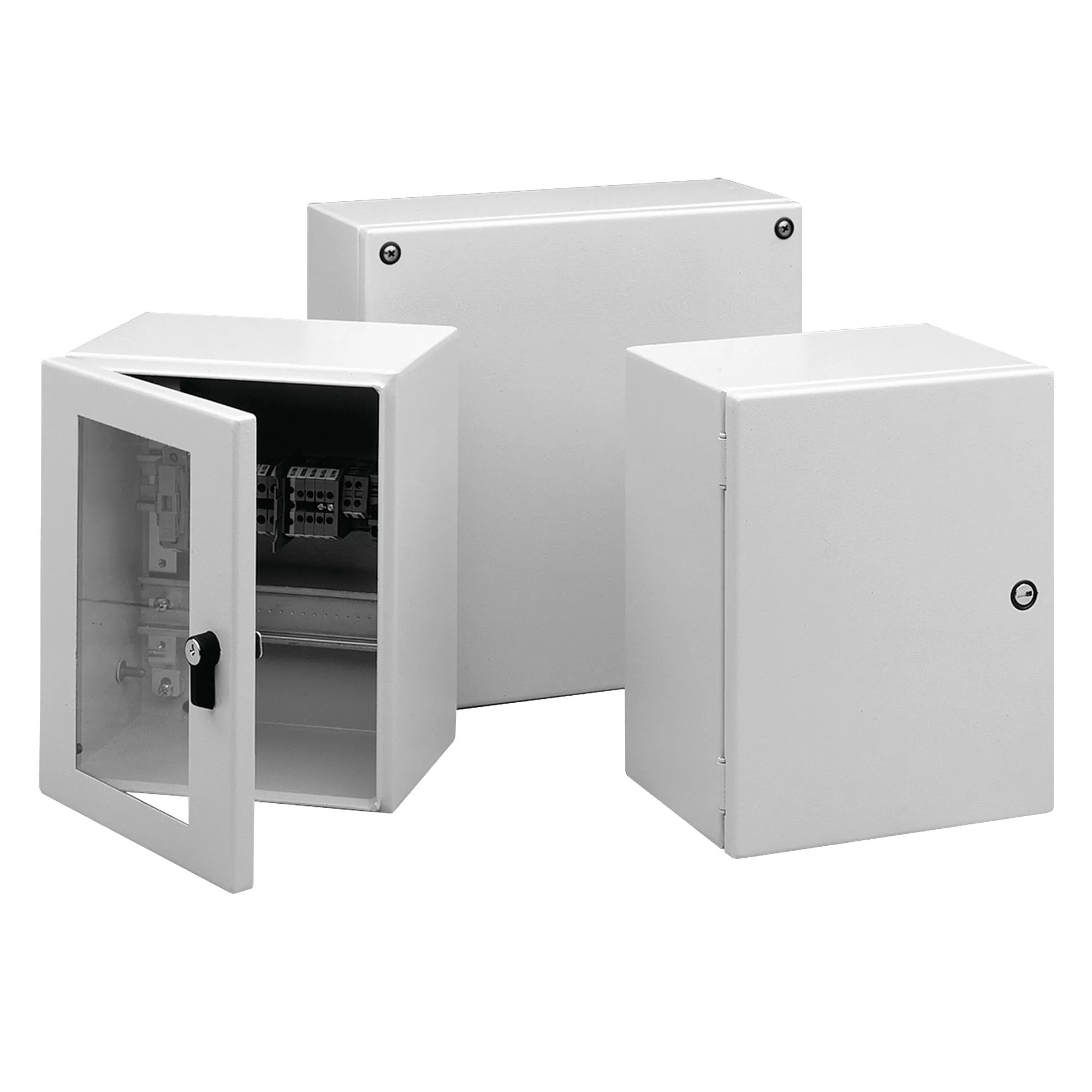

INLINE™ wall mount enclosure, Type 4, Hinged-cover, 16 gauge steel, RAL 7035 textured light-grey polyester powder paint inside and out, Hinged door, Seams continuously welded and ground smooth, External formed body flange, Seamless foam-in-place gasket, Large perimeter body opening, 180° door opening, Removable hinge pins, Bonding provision on cover or door, Self-grounding, Slotted quarter-turn latch.
Metric dimensions
16 gauge steel
Seams continuously welded and ground smooth
External formed body flange channels away liquids
Large perimeter body opening
Mounting holes in back of body for direct mounting or optional external mounting brackets
Seamless foam-in-place gasket
Grounding stud on the body
Bonding provision on the door
Hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
Specifications
Brand Name
nVent Hoffman
Sub Brand
Inline™
Item Name
Enclosure
Type
Single Lock, Single Door
Width
200 mm
Depth
150 mm
Height
250 mm
Cover Type
Hinged with Quarter-Turn Latches
NEMA Rating
NEMA/EEMAC Type 3, 4, 12, IP66
Mounting Type
Wall, Flush
Material
Steel
Finish
Powder Coated
Color
7035 Light Gray
Standards
UL, cUL Listed, UL 508A, UL File Number E61997, CSA File Number 42186, CSA C22.2 No. 94, IEC 6
Application
Controls and Drives
UPC
783510611002
