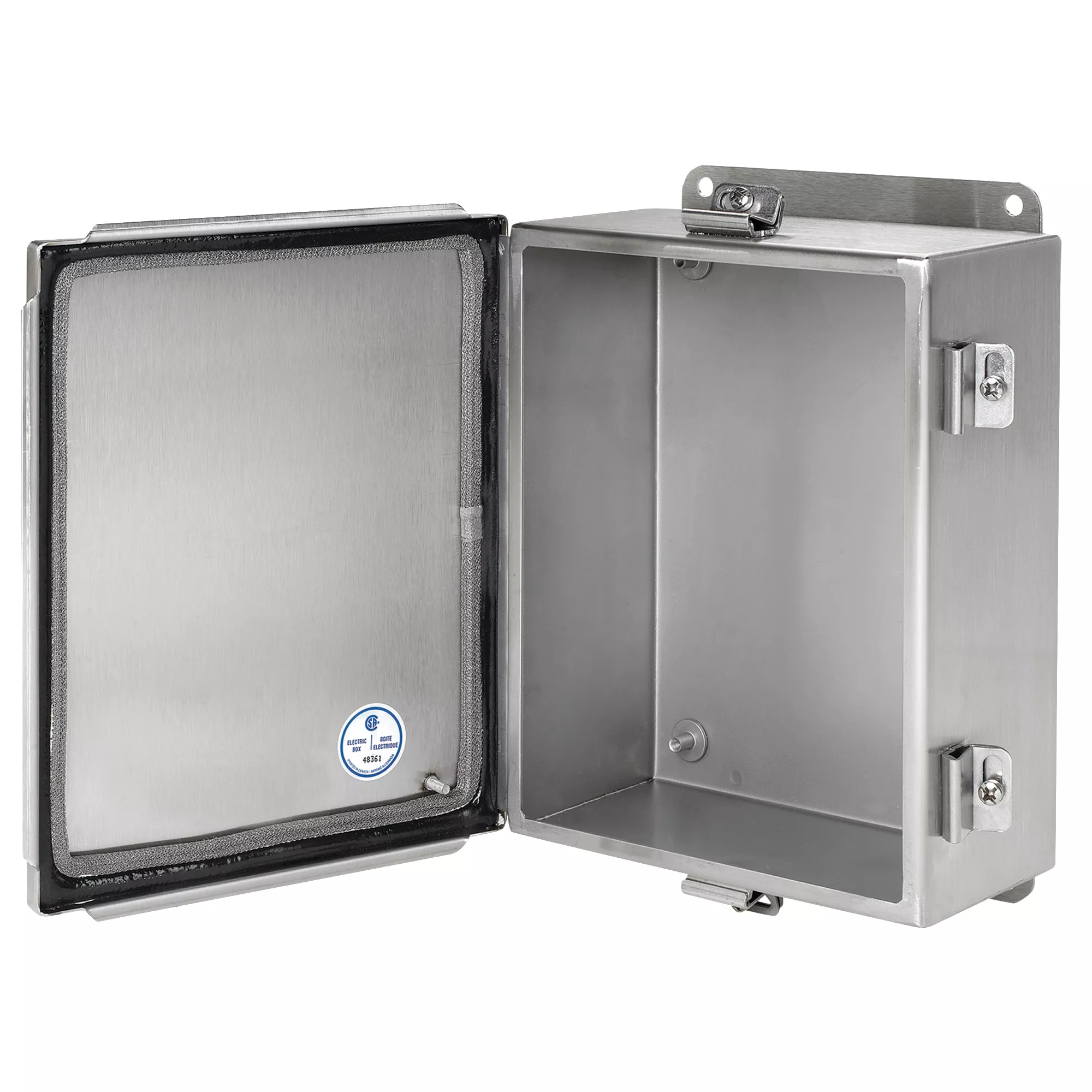

EMC type-4X continuous hinge enclosure with clamp. It is made of 16 and 14 gauge type 304 stainless steel, seams continuously welded and ground smooth. It has seamless foam-in-place gasket adjacent to monel mesh assures water-tight, dust-tight and EMI seal. It is provided with stainless steel screws and clamps and removable door with continuous hinge.
Seams continuously welded and ground smooth
Seamless foam-in-place gasket adjacent to monel mesh assures water-tight, dust-tight and EMI seal
Stainless steel screws and clamps
Removable door with continuous hinge
Weldnuts provided for mounting optional panels and terminal kits
Bonding provision on door
Bonding provision on door
Specifications
Brand Name
Hoffman
Sub Brand
Hoffman
Type
Smooth Barrel, Cylindrical
Width
12 in
Depth
6 in
Height
14 in
NEMA Rating
4X Watertight, corrosion-resistant
Material
304 Stainless Steel
Finish
Brushed
Color
Unpainted
Standards
UL 50, 50E Listed, Type 4, 4X, 12, File No. E27567, cUL Listed per CSA C22.2 No 94, Type 4, 4X, 12, File No. E27567, UL 508A Listed, Type 4, 4X, 12, File No. E61997, cUL Listed per CSA C22.2 No 94, Type 4, 4X, 12, File No. E61997, NEMA/EEMAC Type 4, 4X, 1
Application
For Use In Wet Locations, Classified Areas Such As Inside Paint Spray Booths, In Pharmaceutical Firms, Paint-Manufacturing Plants, Printing Plants Or Any Location Where Ignitable Dust, Fumes, Gases, Paint Residue, Paint Powder Or Corrosive Atmospheres May Be Present
UPC
783510258399
