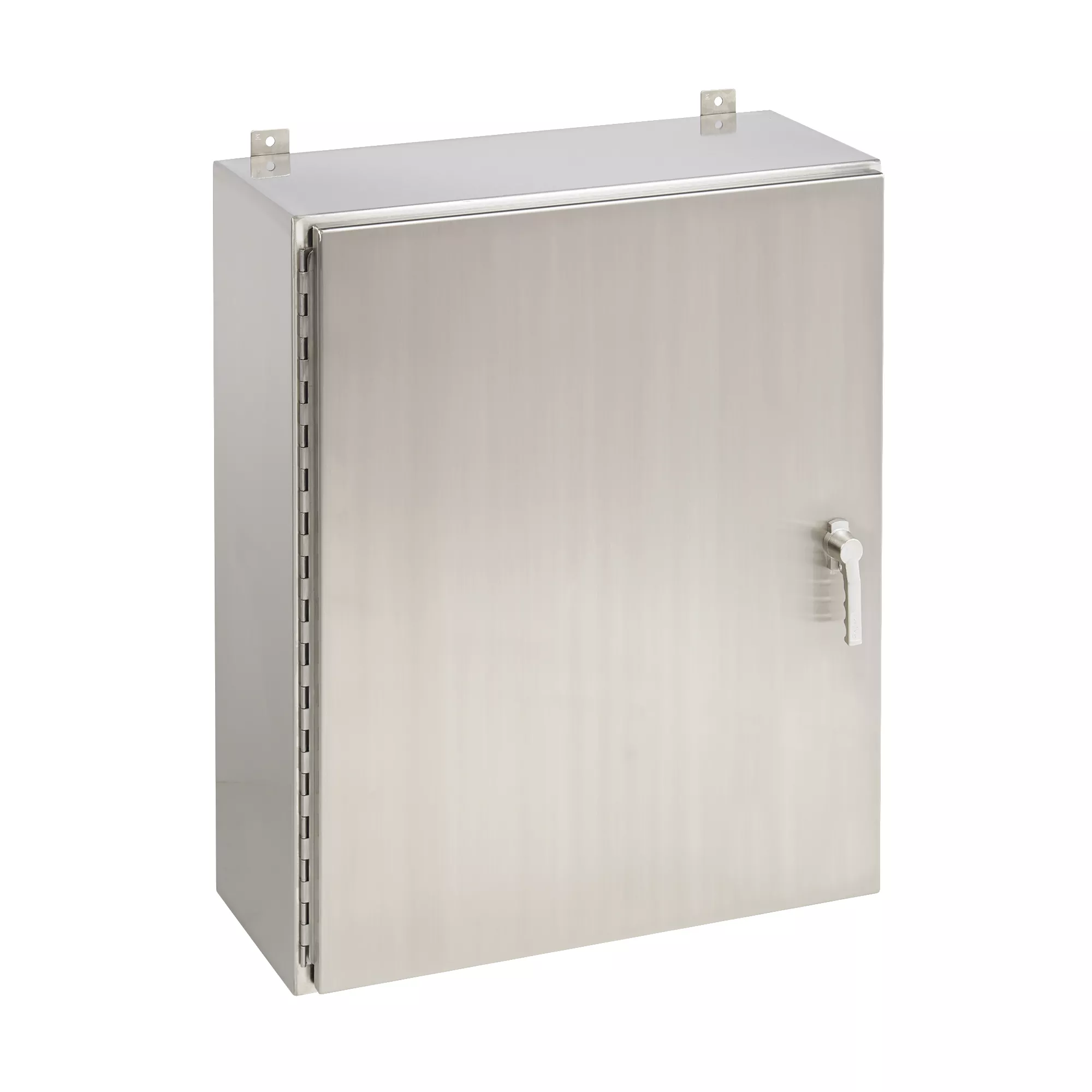

These enclosures feature nVent HOFFMAN’s exclusive PowerGlide Handle with 3-point latching. This Wallmount 3-Point Latch Type 4X, A24H2006SS6LP3PT item measures 24x20x6 in. with a material of SS316, Brushed.
Seams continuously welded and ground smooth
Seamless foam-in-place gasket
Rolled lip around three sides of door
Internal 3-point latch and Type 316L stainless steel padlocking PowerGlide Handle
Remove door by pulling stainless steel continuous hinge pin
Data pocket is high-impact thermoplastic
Collar studs provided for mounting optional panels
Exterior hardware on Type 316L stainless steel enclosures matches enclosure material
Bonding provision on door; grounding stud on body
Bonding provision on door; grounding stud on body
Specifications
Brand Name
Hoffman
Sub Brand
Hoffman
Type
Stainless Steel Wall Mounted Industrial Enclosures
Width
20 in
Depth
6 in
Height
24 in
NEMA Rating
4X Watertight, corrosion-resistant
Material
316 Stainless Steel
Finish
Brushed
Color
Unpainted
Standards
UL 508A Listed, Type 3R, 4, 4X, 12, File No. E61997, cUL Listed per CSA C22.2 No 94, Type 3R, 4, 4X, 12, File No. E61997, NEMA/EEMAC Type 3R, 4, 4X, 12, 13, IEC 60529, IP66, Meets NEMA Type 3RX requirements
Application
Controls and Drives; Corrosive Environments
UPC
783510143275
