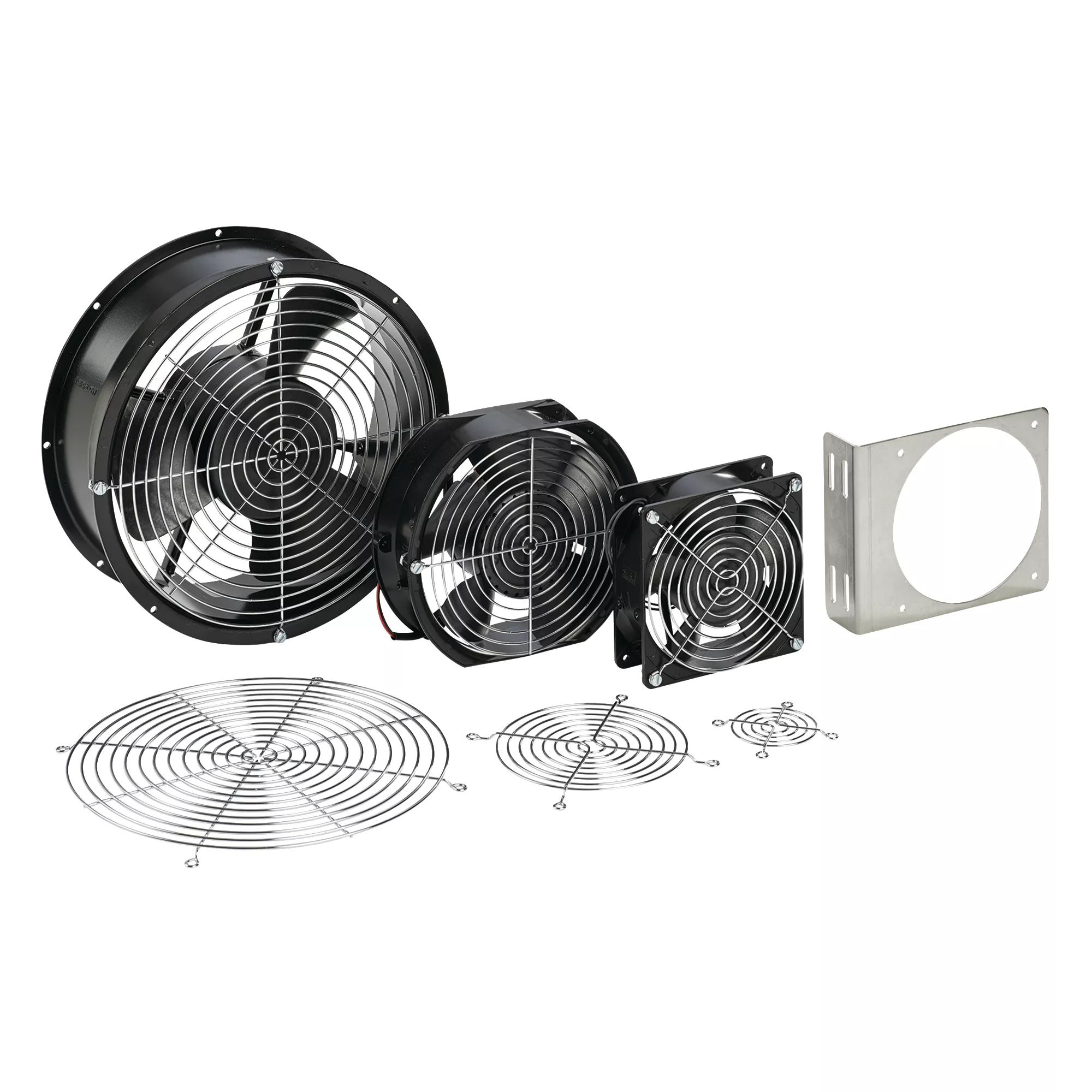

Compact Axial Fans provide quiet, reliable cooling in applications where enclosure space is limited. This Compact Axial Fan 10-inch, A10AXFNPG item is rated for 115V 560CFM with Power Cord.
Maximum operating temperature is 158 F (70 C)
4-inch fan is thermally protected and uses permanently lubricated ball bearings
6- and 10-inch fans have ball-bearing construction and split-capacitor motors
Split-capacitor motors are thermally protected to avoid premature failure
Dynamically balanced impellers molded from polycarbonate material
One finger guard is furnished (additional finger guards are available)
All mounting hardware is provided
240 and 560 CFM fans have ball bearing construction and split capacitor motors
Fans have leadwires with ends stripped 1/2-inch (12-mm) or 6-foot (1.8-m) cord with polarized plug for power connections
Fan bracket and additional finger guards must be purchased separately
Specifications
Brand Name
nVent Hoffman
Sub Brand
Hoffman
Item Name
Axial Fan
Type
Compact
Blade Size
2 in
Flow Rate
21.5 ft³/min
Housing Material
Polycarbonate
Series
D85
Speed
4550 r/min
Power Rating
2.16 W
Voltage Rating
24 VDC
Amperage Rating
0.09 A
Frequency Rating
50/60 Hz
Motor Type
AC
Sound Level
65 dB
Guard Type
Finger
Color/Finish
Black
Standards
UL Listed, CSA Certified, RoHS Compliant
Application
For Applications Where Enclosure Space is Limited and Quiet, Reliable Cooling is Required
UPC
783510173937
