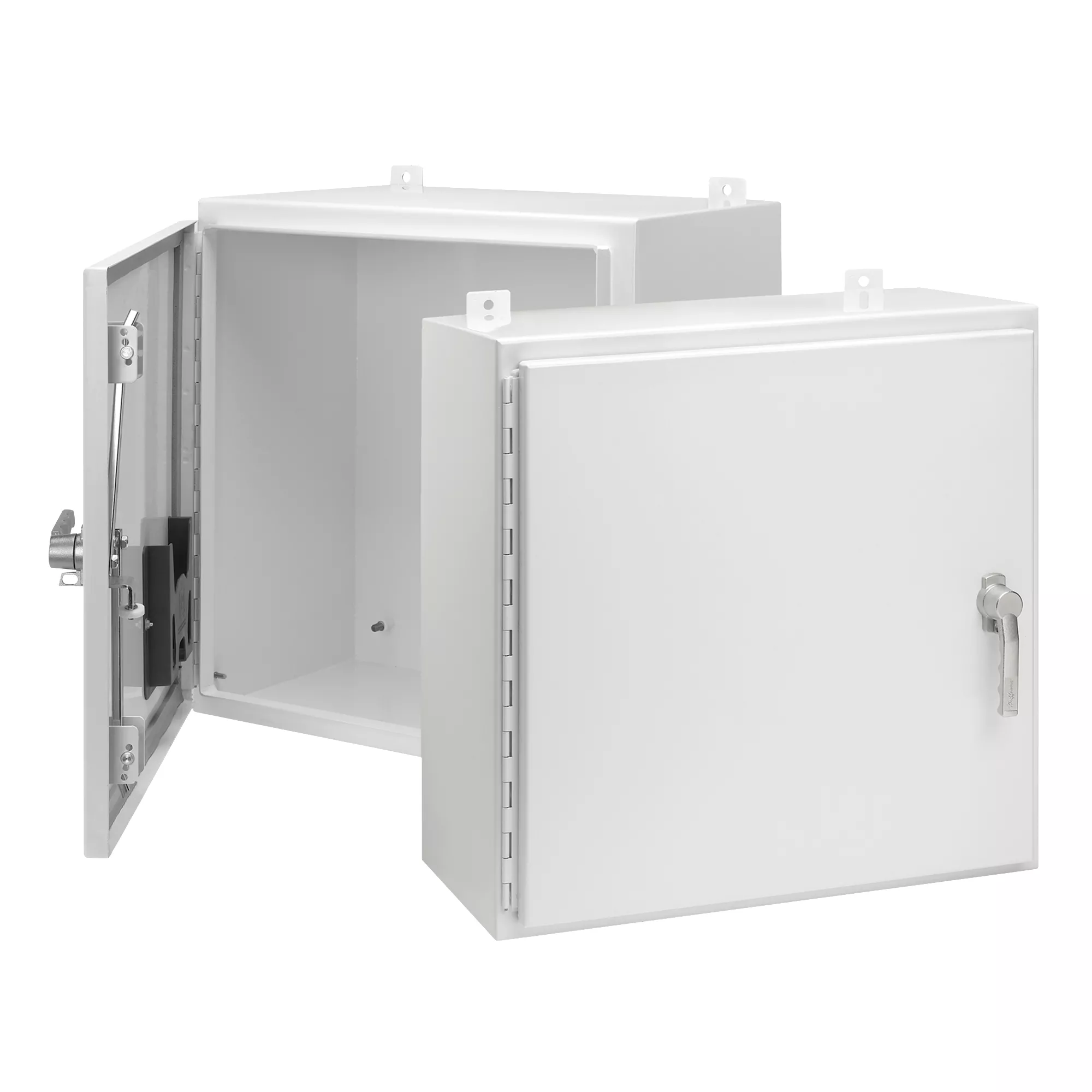

Type 4X White Painted SS Enclosures are ideal for outdoor use where reduced solar heat is desired. This Single-Door Enclosure with 3-Point Latch 4X, A36H3612SSLP3PTW item measures 36x36x12 with a material of SS 304, color White.
Specifically designed for type 4x food & beverage industry, indirect contact zone applications.
Seams continuously welded and ground smooth
Type 4-rated gasket
90-degree external formed flange on top of body opening
Type 316L stainless steel padlocking PowerGlide Handle and 3-point latching
Door removed by pulling stainless steel continuous hinge pin
Data pocket is high-impact thermoplastic
Collar studs provided for mounting optional panels
Specifications
Brand Name
Hoffman
Sub Brand
Hoffman
Type
Stainless Steel Wall Mounted Industrial Enclosures
Width
36 in
Depth
12 in
Height
36 in
NEMA Rating
4X Watertight, corrosion-resistant
Material
304 Stainless Steel
Finish
Powder Coated
Color
White
Standards
UL 508A Listed, Type 3R, 4, 4X, 12, File No. E61997, cUL Listed per CSA C22.2 No 94, Type 3R, 4, 4X, 12, File No. E61997, NEMA/EEMAC Type 3R, 4, 4X, 12, 13, IEC 60529, IP66, Meets NEMA Type 3RX requirements
Application
For Use In Wet Locations, Classified Areas Such As Inside Paint Spray Booths, In Pharmaceutical Firms, Paint-Manufacturing Plants, Printing Plants Or Any Location Where Ignitable Dust, Fumes, Gases, Paint Residue, Paint Powder Or Corrosive Atmospheres May Be Present
UPC
783510171162
Packages
