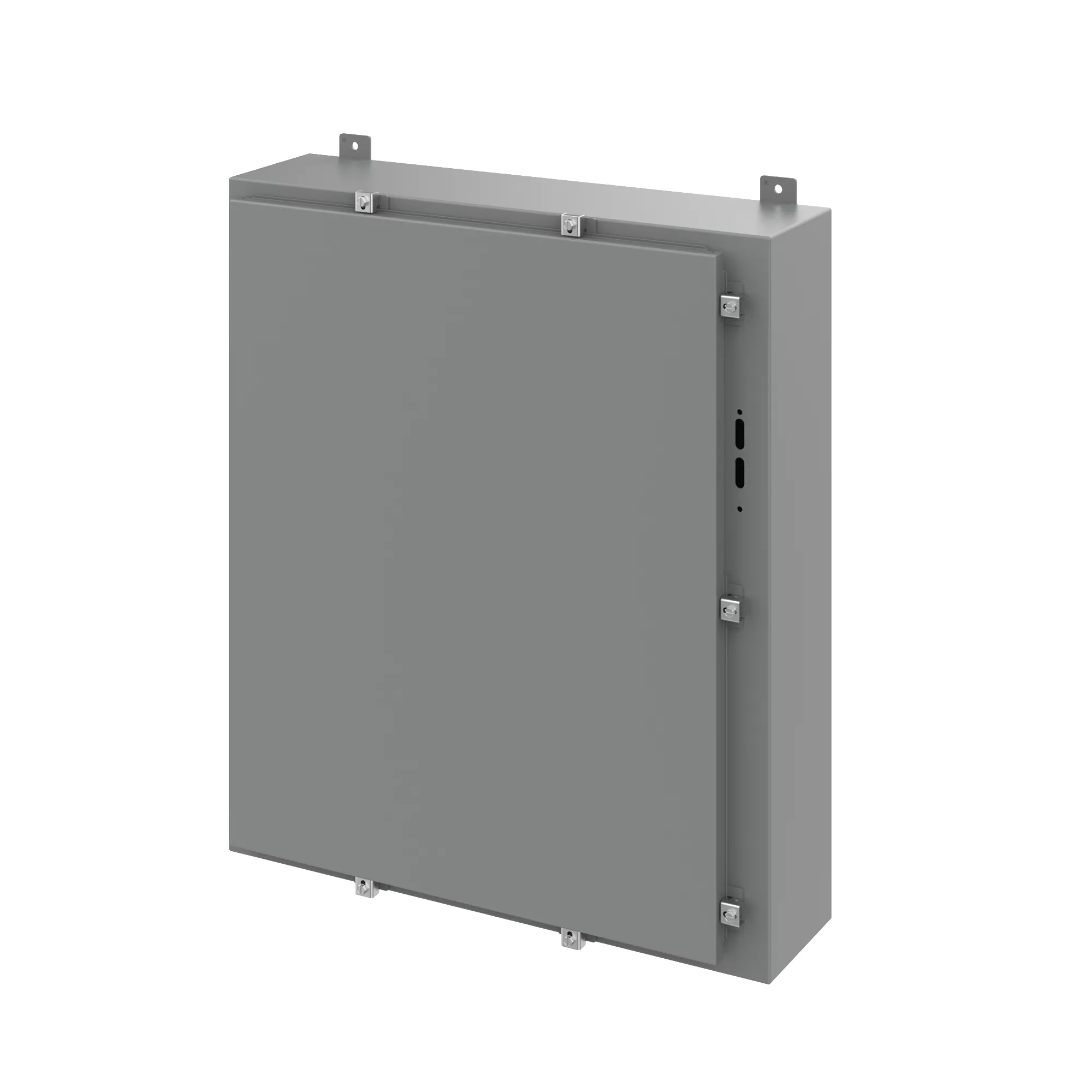

FLANGE MOUNT CIRCUIT BREAKER/DISCONNECT SWITCH; HEIGHT 36 INCH; WIDTH 31.38 INCH; DEPTH 8 INCH; STEEL; MATERIAL SPECIFICATION 14 GAUGE; ANSI 61 GRAY; POLYESTER POWDER COATED OVER PHOSPHATIZED SURFACE; CONTINUOUS HINGE WITH REMOVABLE PIN, CLAMP COVER; BACK PANEL A-36P30; NEMA 3/4/12/13, IP66; EXTERNAL FEET, FLANGE MOUNTING; APPROVAL UL 508, CSA, JIC; HOFFMAN[R] BRAND; APPLICABLE STANDARD IEC 60529; INCLUSION (1) BODY STIFFENER, (7) CLAMP, GASKET, THERMOPLASTIC DATA POCKET
Seams continuously welded and ground smooth
External mounting brackets
External-formed flange around all sides of enclosure opening
Stainless steel door clamps on three sides of door
Removable door with continuous hinge
Type 4 rated door gasket
Collar studs for mounting optional panels
Holes in body for mounting disconnect operating handle and operating mechanism
Bonding provision on door
Adjustable door interlock bracket fastened to door) and instructions for installing disconnects
Specifications
Brand Name
Hoffman
Sub Brand
Hoffman
Type
Type 4 Mild Steel Freestanding Enclosure
Width
31.38 in
Depth
8 in
Height
36 in
NEMA Rating
4 Watertight
Material
Mild Steel
Finish
Powder Coated
Color
Gray
Standards
UL 508A Listed, Type 4, 12, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 4, 12, File No. E61997, NEMA/EEMAC Type 3, 4, 12, 13, CSA File No. 42186: Type 4, 12, IEC 60529, IP66
Application
For Maestro, Maestro IR, Vive Maestro Wireless, Maestro Wireless, Caseta Wireless, Pico Wireless, Diva, Skylark Contour, Skylark, Lumea Controls
UPC
783510201500
