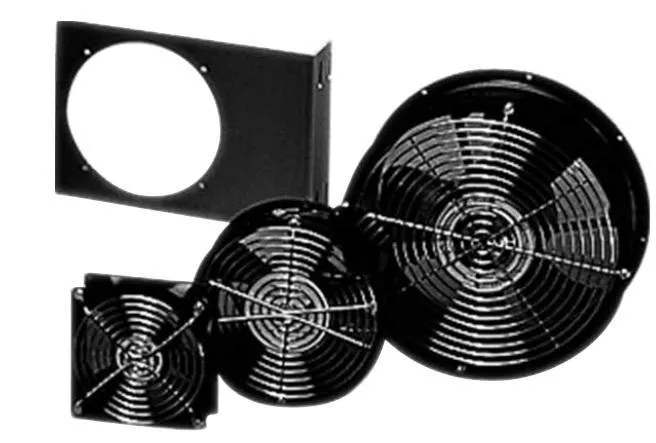

Compact axial fan, 4 inch. They have ball-bearing construction and split-capacitor motors are thermally protected to avoid premature failure. All mounting hardware is provided. One finger guard is furnished.
Maximum operating temperature is 158 F (70 C)
4-inch fan is thermally protected and uses permanently lubricated ball bearings
6- and 10-inch fans have ball-bearing construction and split-capacitor motors
Split-capacitor motors are thermally protected to avoid premature failure
Dynamically balanced impellers molded from polycarbonate material
One finger guard is furnished (additional finger guards are available)
All mounting hardware is provided
240 and 560 CFM fans have ball bearing construction and split capacitor motors
Fans have leadwires with ends stripped 1/2-inch (12-mm) or 6-foot (1.8-m) cord with polarized plug for power connections
Fan bracket and additional finger guards must be purchased separately
Specifications
Brand Name
nVent Hoffman
Sub Brand
Hoffman
Item Name
Axial Fan with Filter
Type
Compact
Flow Rate
200 m³/h
Power Rating
84 W
Voltage Rating
24 VDC
Amperage Rating
.35 A
Motor Type
AC
Color/Finish
Black
Standards
UL Listed, CSA Certified
Application
Controls and Drives; Power Distribution
UPC
783510173913
