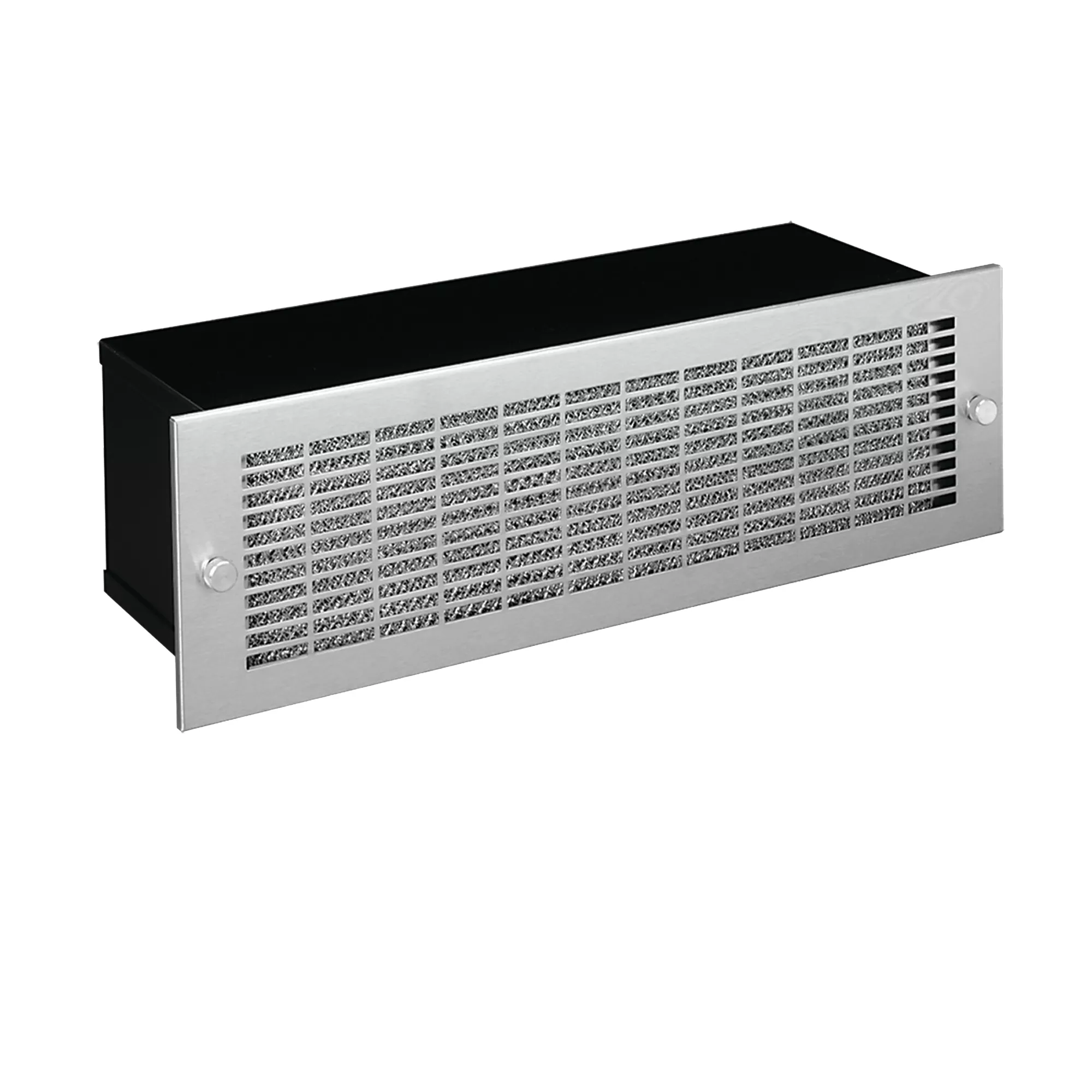

Blower Fan Package provides the maximum amount of cooling air in the least amount of space. This Rack-Mountable Fan Package, ADB275 item is rated 275CFM 115V with a material of SS304 finish Brushed.
Intake grille is easily removed with two captive thumbnuts
Washable aluminum filter
Single phase motor powers the statically balanced blower
Motor is thermally protected and cooled by incoming forced air
Direct drive induction motor contains permanently lubricated ball bearings
Lubricant protects from -20 F to 298 F (-29 C to 148 C)
Rotating components are suspended on neoprene shock-mounts
Three-conductor power cord (five feet long)
The unit is self-supporting with 16 gauge steel flanges notched per EIA RS-310-D.
An exhaust grille and filter package (catalog number AEXGR275) is required and must be ordered separately
Specifications
Brand Name
Hoffman
Sub Brand
Hoffman
Size
5.75 x 19 x 7.25 in
Voltage Rating
100 – 120 VAC
Amperage Rating
1.2 A
Type
Open-Loop Cooling
Motor Type
AC Motor
Material
Stainless Steel
Standards
UL Component Recognized, File No. E61997, EIA RS-310-D , CSA certified , (blower motor only)
Application
Controls and Drives; Power Distribution
UPC
783510222703
