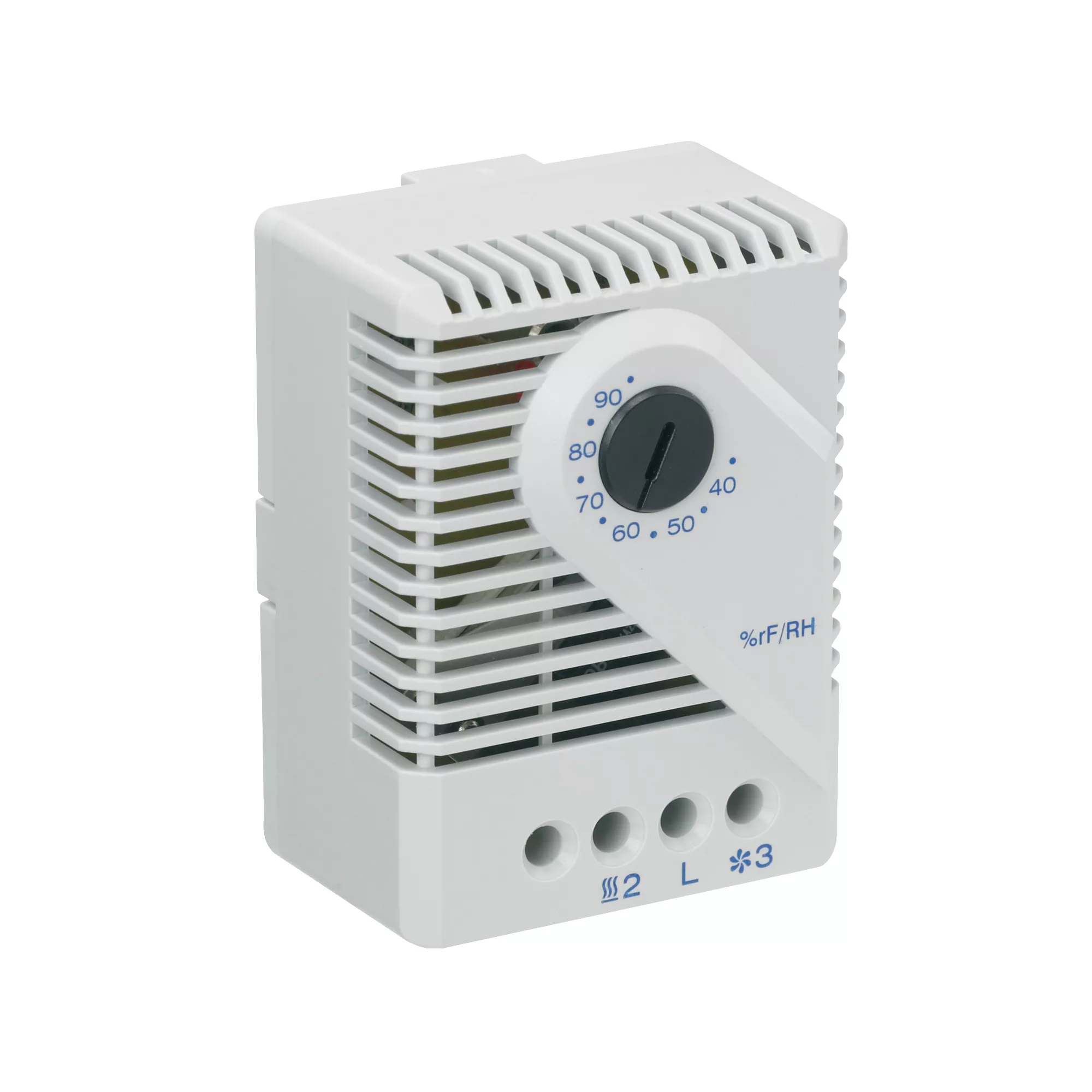

HOFFMAN AMHUM Hygrostat mechanical plastic gry 2.64×1.97×1.5in

Mechanical hygrostat with adjustable relative humidity range. High switching capacity. Long service life (100,000 cycles). Maximum permissible air velocity of 50 ft./sec. (15 m/s). Contact resistance less than 10 mohm.

Adjustable relative humidity range

High switching capacity

Long service life (100,000 cycles)

Maximum permissible air velocity of 50 feet/sec. (15 m/s)

Maximum switching voltage = 250 VAC 250 V should be switched only in a non-condensing environment

Change-over contact

Mounting clip for 35-mm DIN rail

Connection is a 3-pole terminal for AWG 14 max. (2.5-mm squared)

Contact resistance less than 10 m&937;
