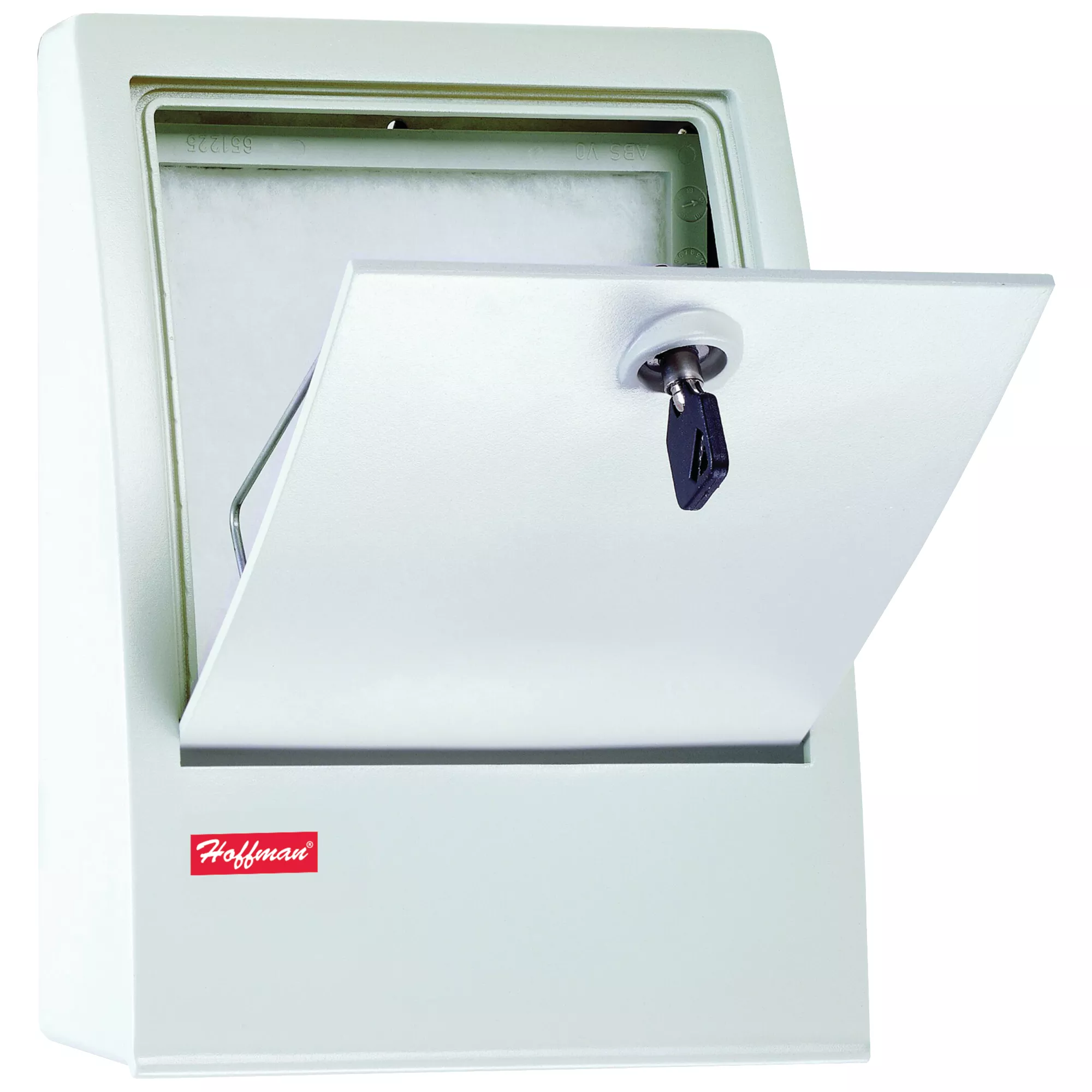

Exhaust grille kit for use with AOFF118 outdoor filter fan package.
The fan has a ball bearing axial with a service life minimum of 50,000 hours at 77 F (25 C) and 65 percent relative humidity.
Airflow 11.8 CFM (20 cubic meters/hour) free blowing
Aluminum fan body, plastic impeller
Removable F5 filter
Lockable door in hood
Two-sided tape provided
Filter hood permanently fixed to enclosure from inside
2 lead wires, 3.94-inch (100-mm) long, with pressure clamps, 14 gauge max. (2.5 mm)
Synthetic filter material, temperature resistant to 212 F (100 C), self-extinguishing class F1, moisture resistant to 100 percent RH
Filter mat: Fine grade F5 to DIN EN779 filtering degree: 98 percent of particles larger than 10 &181;m (10 microns)
Specifications
Brand Name
Hoffman
Sub Brand
Hoffman
Type
Open-Loop Cooling
Width
6.5 in
Depth
5 in
Height
2.90 in
Material
Plastic
Color
Gray
Finish
Matte
Standards
CE, cURus Type 12, File No. E234324, NEMA Type 3R, IEC/EN60529, IP55
Application
Controls and Drives; Power Distribution
UPC
783510164539
