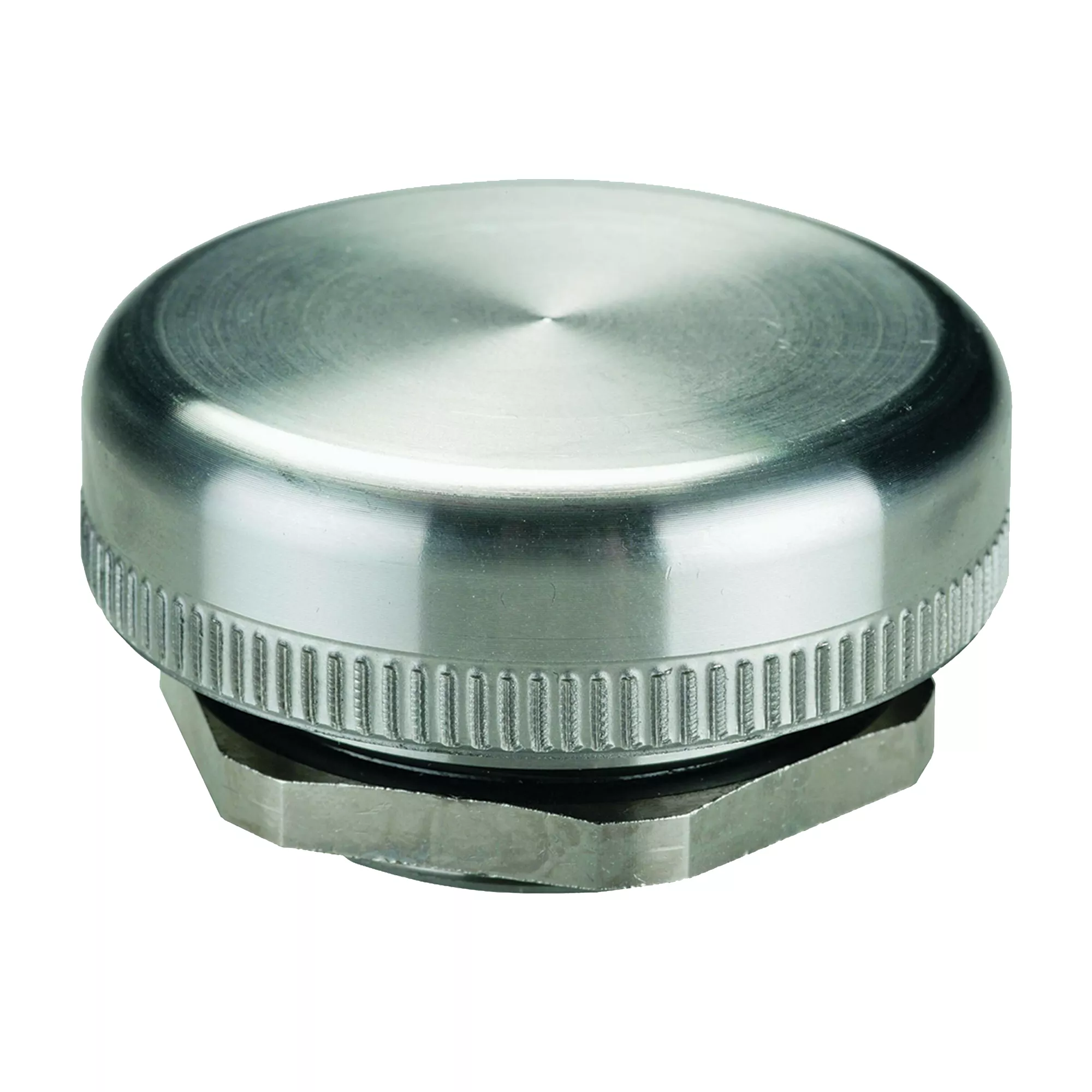

Pressure compensator features air permeability of 42 cubic feet/hour (1,200 liters/hour) at a pressure difference of minimum 70 mbar. Easy installation by drilling one 1.60 inch (41 mm) diameter hole. Sealing gasket (Nitrile Buna-N Rubber). Type 316L stainless steel. Semipermeable membrane inside the plug to filter moisture and dust. Mounting thread M40 with union nut. Machined type 316L stainless steel finish. Pressure differentials in a tightly sealed enclosure result from heat generated by electrical and electronic equipment within the enclosure and fluctuations of outside ambient temperature.
Air permeability = 42 cubic feet/hour (1,200 liters/hour) at a pressure difference of min. 70 mbar
Easy installation: drill one 1.60-in. (41-mm) diameter hole
Sealing gasket (Nitrile Buna-N Rubber)
Semipermeable membrane inside the plug filters moisture and dust
Mounting thread M40 with union nut
Mounting thread M40 with union nut
Specifications
Brand Name
nVent Hoffman
Sub Brand
Hoffman
Item Name
Pressure Compensation Device
Size
1.22 x 1 in
Material
316 Stainless Steel
Type
Cooling Accessories
CFM
0.7
Color/Finish
Gray
Dimensions
58 mm dia x 31 mm D
For Use With
Controls and Drives, Power Distribution
Standards
CE, NEMA Type 4X, IEC/EN 60529, IP66,
Application
Controls and Drives; Power Distribution
UPC
783510164577
