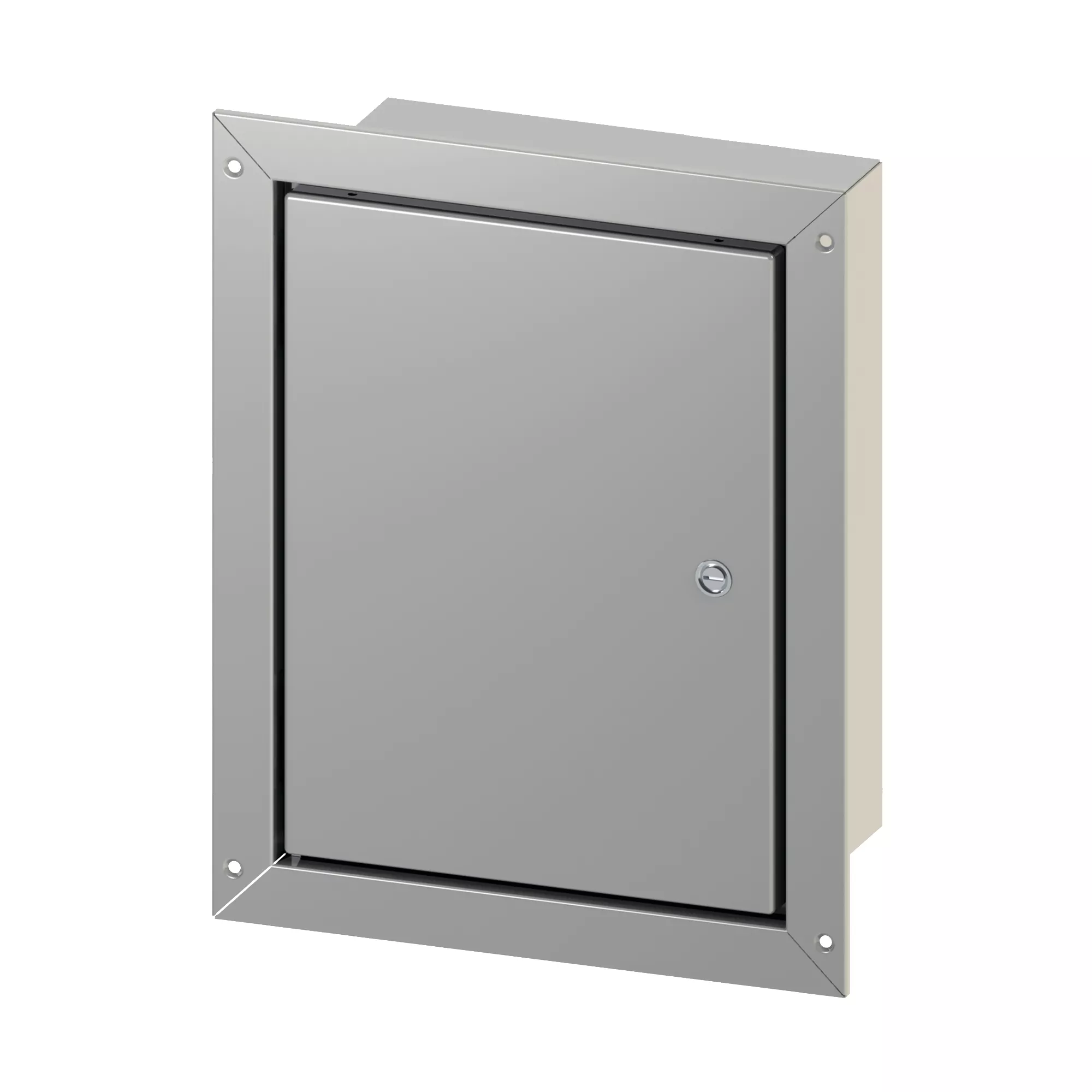

Concept flush-mount is ideal for installing in walls, control panels or machine housings. This Concept Flush-Mounted Enclosures, CFM20166LG item measures 20.00×16.00×6.00 inches with a material of Steel colored Lt Gray.
Seams continuously welded and ground smooth
Corner-formed doors
Simple easy-to-remove and install hinge pins with built-in captivation clip
High-torque threadless studs and fasteners on door
Minimum-width body flange provides maximum door opening (210&160;degrees)
Door opens 210 degrees
External formed body flange
Panel mounting studs fit optional Concept panels and other accessories
Mounting holes in back of body for optional external wall-mount brackets
Removable door with hidden hinges for clean, aesthetic appearance
Specifications
Brand Name
nVent Hoffman
Sub Brand
Concept
Item Name
Enclosure
Type
Single Lock, Single Door
Width
406 mm
Depth
152 mm
Height
508 mm
Cover Type
Hinged, Quarter-Turn Latches
Gauge
14 and 16
NEMA Rating
NEMA 4, 12, IP66
Mounting Type
Wall, Flush
Material
Steel
Finish
Powder Coated
Color
7035 Light Gray
Standards
UL 508A, cUL Listed, UL File Number E61997, CSA C22.2 No. 94, NEMA Type 4, 1
Application
For Machine Control Applications
UPC
783510164690
