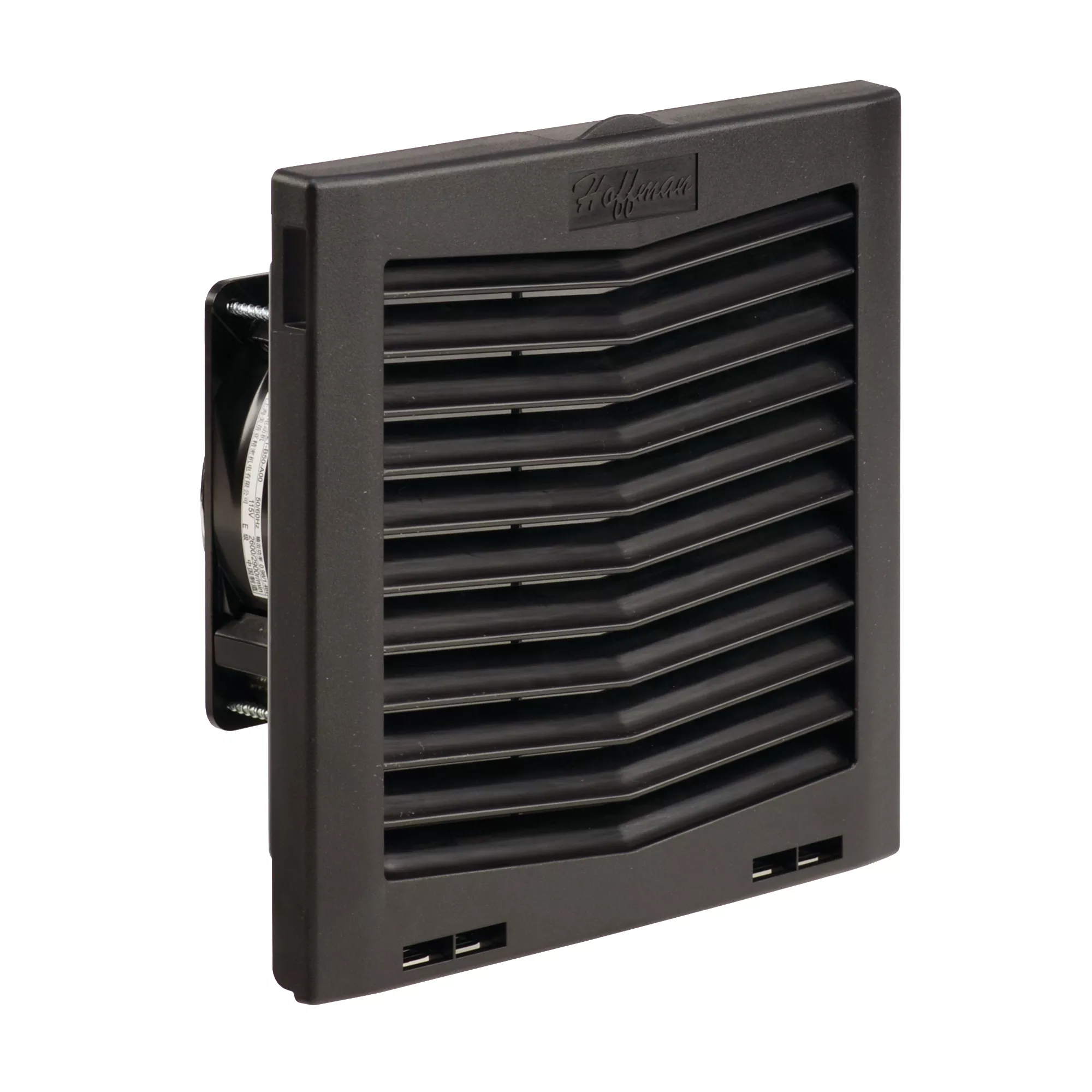

HF Side-Mount Filter Fans provide fresh air cooling, ease of installation and tool-less maintenance. This HF09 Side-Mount Filter Fan, HF0948513 item is rated 48V 33CFM colored Black.
Click-Fit design quickly installs into enclosure wall; no tools or screws required
Opens with the flick of a finger for easy filter replacement
Enclosure side wall mounting
Reverse airflow option on HF13 models available to push/pull air through higher static pressure
Standard rope gasket provides proper seal to the enclosure
Similar cut-out sizes as other filter fan manufacturers
Terminal block connections
Optional thermostat available to save energy and extend service life
Hinged grille remains attached after opening
Size rage from 4 inch (102 mm) to 13 inch (325 mm)
Specifications
Brand Name
Hoffman
Size
8.19 x 8.21 x 4.15 in
Voltage Rating
48 VDC
Amperage Rating
0.17 A
Type
Open-Loop Cooling
Material
Plastic
Application
Controls and Drives; Power Distribution
UPC
783510348427
